Lawn tractors & riding mowers
Model | Engine displacement | Power output | Years |
H | |||
H1011 | 337 cc (20.6 cu-in) | 11.0 HP (8.2 kW) at 3,600 rpm | – |
H2013 | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | 1995-1998 |
H2113 | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | 1988-1998 |
H3011 | 337 cc (20.6 cu-in) | 11.0 HP (8.2 kW) at 3,600 rpm | – |
H3013H | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | – |
H4013 | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | 1990-1991 |
H4514 | 359 cc (21.9 cu.in.) | 13.0 HP (9.7 kW) at 3,600 rpm | 1990-1998 |
H4518 | 635 cc (38.7 cu.in.) | 18.0 HP (13.2 kW) at 3,600 rpm | 1991-1998 |
H5013 | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | 1991-1999 |
H5516D | 676 cc (41.3 cu.in.) | 16.0 HP (11.9 kW) at 3,600 rpm | – |
H5518 | 635 cc (38.7 cu.in.) | 18.0 HP (13.2 kW) at 3,600 rpm | 1991-1999 |
H6522 | 1,235 cc (75.4 cu.in.) | 22.0 HP (16.2 kW) at 3,000 rpm | 1991-1996 |
HA | |||
HA4118 | 614 cc (37.5 cu.in.) | 18.0 HP (13.4 kW) at 3,600 rpm | 1998-2001 |
HA4120 | 614 cc (37.5 cu.in.) | 20.0 HP (14.9 kW) at 3,600 rpm | 1998-2001 |
HF | |||
HF1211 | 337 cc (20.6 cu-in) | 11.0 HP (8.2 kW) at 3,600 rpm | – |
HF2213 | 389 cc (23.7 cu-in) | 13.0 HP (9.7 kW) at 3,600 rpm | – |
HF2218 | 614 cc (37.5 cu.in.) | 18.0 HP (13.4 kW) at 3,600 rpm | – |
HF2315 | 529 cc (32.2 cu.in.) | 13.0 HP (9.8 kW) at 3,600 rpm | – |
HF2417 | 529 cc (32.2 cu.in.) | 17.0 HP (12.7 kW) at 2,800 rpm 15.2 HP (11.3 kW) at 2,800 rpm | 2004-2020 2020-2021 |
HF2620 | 614 cc (37.5 cu.in.) | 20.0 HP (14.9 kW) at 3,600 rpm | 2004-2012 |
HF2622 | 687 cc (41.9 cu.in.) | 22.0 HP (16.4 kW) at 2,800 rpm | 2013-2019 |
HT | |||
HT3810 | 406 cc (24.8 cu.in.) | 10.0 HP (7.5 kW) at 3,600 rpm | 1985-1989 |

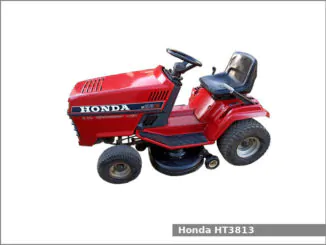

HT3813 | 358 cc (21.8 cu.in.) | 13.0 HP (9.7 kW) at 3,600 rpm | 1985-1989 |

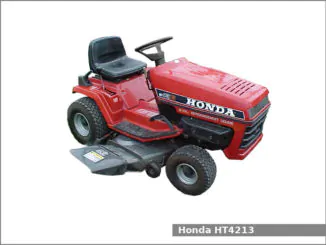

HT4213 | 358 cc (21.8 cu.in.) | 13.0 HP (9.7 kW) at 3,600 rpm | 1987-1989 |
HT-R | |||

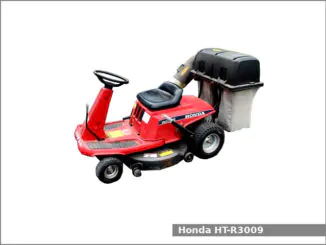

HT-R3009 | 270 cc (16.5 cu.in.) | 8.5 HP (6.3 kW) at 3,600 rpm | 1985-1988 |

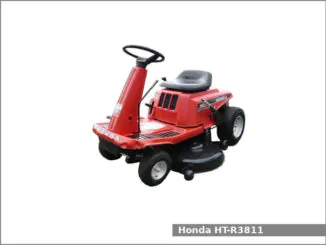

HT-R3811 | 337 cc (20.6 cu.in.) | 11.0 HP (8.2 kW) at 3,600 rpm | 1985-1988 |
RT | |||

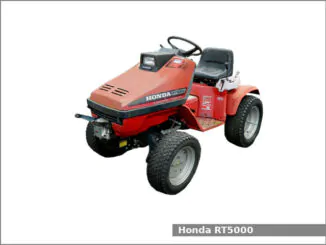

RT5000 | 339 cc (20.7 cu.in.) | 11.0 HP (8.2 kW) at 3,600 rpm | 1986-1989 |
