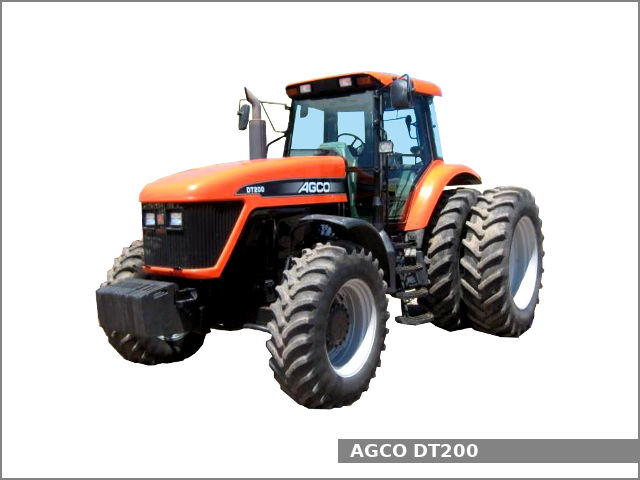

The AGCO DT200 is a 4WD row-crop tractor from the DT series. This tractor was manufactured by the AGCO in Beauvais, France from 2002 to 2004. The AGCO DT200 is equipped with 8.3 L diesel engine and full power shift transmission (18 forward and 6 reverse gears) with electro-hydraulic wet disc clutch.
The AGCO DT200 row-crop tractor used the Cummins C8.3 engine. It is a 8.3 L, 8,275 cm2, (505 cu·in) six-cylinder turbocharged aftercooled diesel engine with 114.0 mm (4.49 in) of cylinder bore and 135.0 mm (5.31 in) of piston stroke. The compression ratio rating is 17.3:1. This engine produced 238.3 PS (175.2 kW; 235 HP) at 2,200 rpm of maximum output power and 970 N·m (98.9 kg·m, 714.9 ft·lb) at 1,250 rpm of peak torque.
The AGCO DT200 is equipped with hydrostatic power steering, hydraulic wet disc brakes and 455 liters (120.2 US gal.; 100.1 Imp. gal) fuel tank.
AGCO DT200 Specifications
| General Specifications | |
| Model | AGCO DT200 |
| Length | 5,150 mm (202.8 in) |
| Width | 2,490 mm (98 in) |
| Height | 3,070 mm (120.9 in) |
| Wheel base | 3,070 mm (120.9 in) |
| Weight | 8,940 kg (19,710 lbs) |
| Fuel tank capacity | 455 liters (120.2 US gal.; 100.1 Imp. gal) |
| Battery | 12V |
| Cabin type | Cab standard |
| Engine | |
| Engine model | Cummins C8.3 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 8.3 L, 8,275 cm2, (505 cu·in) |
| Bore and stroke | 114.0 mm X 135.0 mm (4.49 in X 5.31 in) |
| Compression ratio | 17.3:1 |
| Horsepower | 238.3 PS (175.2 kW; 235 HP) at 2,200 rpm |
| Torque | 970 N·m (98.9 kg·m, 714.9 ft·lb) at 1,250 rpm |
| Starter | Electric |
| Oil capacity: | 19.9 L (21.03 US. qt, 17.51 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Transmission model | – |
| Transmission type | Full power shift with electro-hydraulic wet disc c |
| Gears | 18 forward and 6 reverse |
| Speed | Forward: 37.2 kmh (23.1 mph) Reverse: 10.4 (6.5 mph) |
| Tires | |
| Front tires | – |
| Rear tires | – |
| Three-Point Hitch | |
| Caterogy | III/IIIN |
| Control type | – |
| Lift capacity | 8,620 kg (19,000 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO spped | 1000 rpm |
| Hydraulic system | |
| Hydraulic type | Closed center pressure flow compensated (PFC) |
| Pressure | 2,900 psi (200 bar) |
| Valves | 4 |
| Pump flow | 29.0 gpm (109.8 lpm) |
