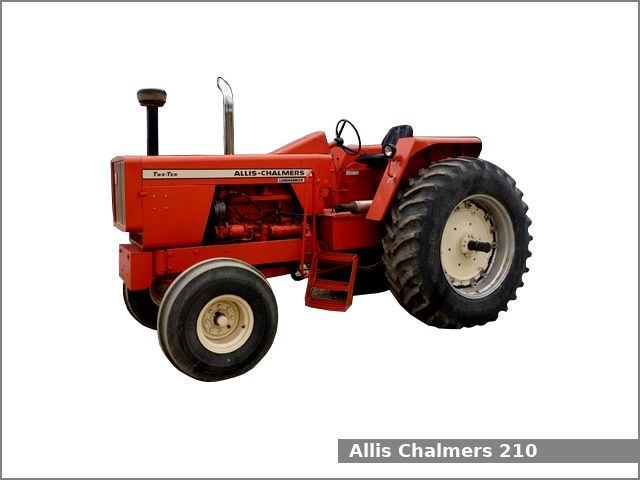

The Allis Chalmers 210 (Two-Ten) is a 2WD row-crop tractor manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1970 to 1973. The Allis Chalmers 210 is equipped with a 7.0 L (426.0 cu·in) six-cylinder diesel engine and a sliding gear transmission with dry disc clutch and 8 forward and 2 reverse gears.
The Allis Chalmers Two-Ten row-crop tractor used the Allis Chalmers 3500 engine. It is a 7.0 L, 6,980 cm2, (426.0 cu·in) six-cylinder turbocharged diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 137.9 PS (101.4 kW; 136.0 HP) at 2,200 rpm of output power.
The Allis Chalmers 210 is equipped with hydrostatic power steering, disc type brakes, open operator station, or QCS Cab (optional beginning from 1972).
Allis Chalmers 210 Specifications
| General Specifications | |
| Model | Allis Chalmers 210 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | 5,635 kg (12,423 lbs) |
| Fuel tank capacity | – |
| Battery | – |
| Cabin type | Open operator station or QCS Cab (optional from 1972) |
| Engine | |
| Engine model | Allis Chalmers 3500 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 7.0 L, 6,980 cm2, (426.0 cu·in) |
| Bore and stroke | 108.0 mm X 127.0 mm (4.25 in X 5 in) |
| Compression ratio | 16.0:1 |
| Horsepower | 137.9 PS (101.4 kW; 136.0 HP) at 2,200 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Hydrostatic power |
| Brakes | Disc type |
| Transmission model | – |
| Transmission type | Sliding gear with dry disc clutch |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 26.0 kmh (16.2 mph) Reverse: 11.0 (6.8 mph) |
| Tires | |
| Front tires | Ag: 10.00-16 |
| Rear tires | Ag: 18.4-38 |
| PTO (Power take-off shaft) | |
| Rear PTO type | – |
| Rear PTO speed | 1,000 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
