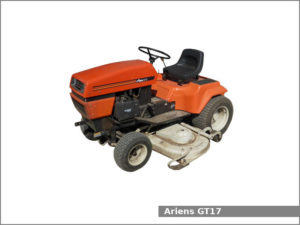

The Ariens GT17 is a 2WD garden tractor manufactured by Ariens in Brillion, Wisconsin, USA from 1979 to 1987. The Ariens GT17 is equipped with a 0.7 L (42.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Ariens GT17 garden tractor used the Kohler KT-17 engine. It is a 0.7 L, 691 cm2, (42.2 cu·in) two-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. The compression ratio rating is 6.1:1. This engine produced 17.3 PS (12.7 kW; 17.0 HP) of output power.
The Ariens GT17 is equipped with manual steering, disc brakes, an open operator station and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.
Following attachments are available for the Ariens GT17 garden tractor:
- Mid-mount 1,060 mm (42 in) mower deck with 3-blades
- Mid-mount 1,210 mm (48 in) mower deck with 3-blades
- Mid-mount 1,520 mm (60 in) mower deck with 3-blades
- Front-mount 1,370 mm (54 in) blade
- Front-mount 1,210 mm (48 in) dual-stage snowblower
- Johnson loader
Ariens GT17 Specifications
General Specifications | |
Model | Ariens GT17 |
Length | 1,900 mm (74.8 in) |
Width | 1,090 mm (42.9 in) |
Height (steering wheel) | 1,190 mm (46.9 in) |
Wheel base | 1,210 mm (47.6 in) |
Weight | 420 kg (926 lbs) |
Fuel tank capacity | 17.0 liters (4.5 US gal.; 3.7 Imp. gal) |
Battery | 12V, CCA 255A, 39Ah |
Cabin type | Open operator station |
Engine | |
Engine model | Kohler KT-17 |
Engine type | Four-stroke, air-cooled |
Cylinders | 2 |
Fuel type | Gasoline |
Displacement | 0.7 L, 691 cm2, (42.2 cu·in) |
Bore and stroke | 79.0 mm X 70.0 mm (3.11 in X 2.76 in) |
Compression ratio | 6.1:1 |
Horsepower | 17.3 PS (12.7 kW; 17.0 HP) |
Starter | Electric |
Oil type | SAE 10W-30, 30 |
Oil capacity: | 1.4 L (1.5 US. qt, 1.2 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | Disc |
Transmission model | – |
Transmission type | Hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 10.5 kmh (6.5 mph) Reverse: 4.8 kmh (3 mph) |
Transmission oil capacity | 5.2 L (1.4 US. gal, 1.1 Imp. gal.) |
Tires | |
Front tires | Lawn/turf: 16-6.50×8 |
Rear tires | Lawn/turf: 23-10.50×12 |
Three-Point Hitch | |
Category | 0 (optional) |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Front PTO type | Independent with electric clutch |
Front PTO speed | 3,600 rpm |
Rear PTO type | Independent with electric clutch |
Rear PTO speed | – |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
