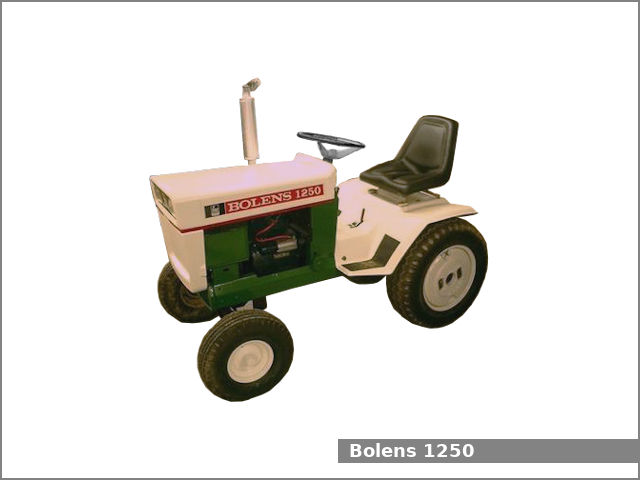

The Bolens 1250 is a 2WD garden tractor from the Large Frame series. This tractor was manufactured by Bolens from 1967 to 1969. The Bolens 1250 is equipped with a 0.5 L (28.9 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Bolens 1250 garden tractor used the Wisconsin S12D engine. It is a 0.5 L, 473 cm2, (28.9 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm of output power.
Following attachments are available for the Bolens 1250 garden tractor:
- Mid-mount Bolens 1,210 mm (48 in) mower deck with hydraulic lift
- Front-mount Bolens 1,370 mm (54 in) blade
- Front-mount Bolens 1,060 mm (42 in) snowblower
Bolens 1250 Specifications
| General Specifications | |
| Model | Bolens 1250 |
| Length | 1,820 mm (71.7 in) |
| Width | 960 mm (37.8 in) |
| Height | 1,140 mm (44.9 in) |
| Wheel base | 1,240 mm (48.8 in) |
| Weight | 442 kg (974 lbs) |
| Fuel tank capacity | – |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Wisconsin S12D |
| Engine type | Four-stroke, air-cooled |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.5 L, 473 cm2, (28.9 cu·in) |
| Bore and stroke | 89.0 mm X 76.0 mm (3.5 in X 2.99 in) |
| Horsepower | 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm |
| Starter | Electric |
| Oil type | SAE 30 |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | Eaton 12 |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph) |
| Transmission oil capacity | 9.5 L (2.5 US. gal, 2.1 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 5.70/5.00×8 |
| Rear tires | Ag: 27×8.50-15 |
| Three-Point Hitch | |
| Category | 0 (optional) |
| Control type | – |
| Lift capacity (at ends) | – |
