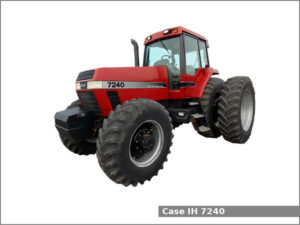

The CaseIH 7240 is a 2WD/4WD row-crop tractor from the Magnum 7200 series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1994 to 1996. The Case IH 7240 is equipped with a 8.3 L (504.5 cu·in) six-cylinder diesel engine and a full power shift with hydraulic wet disc clutch transmission with 18 forward and 4 reverse gears (24 forward and 6 reverse with creeper).
The Case-IH 7240 row-crop tractor used the CDC engine. It is a 8.3 L, 8,267 cm2, (504.5 cu·in) six-cylinder turbocharged diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 197.7 PS (145.4 kW; 195.0 HP) at 2,200 rpm of output power.
The CaseIH 7240 is equipped with power steering, differential hydraulic wet disc brakes, cab with air-conditioning, and 359.6 liters (95 US gal.; 79.1 Imp. gal) fuel tank.
CaseIH 7240 Specifications
| General Specifications | |
| Model | Case-IH 7240 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 3,000 mm (118.1 in) |
| Ground clearance | 2WD: 560 mm (22 in) 4WD: 420 mm (16.5 in) |
| Weight (shipping) | 2WD: 7,180 kg (15,829 lbs) 4WD: 7,640 kg (16,843 lbs) |
| Fuel tank capacity | 359.6 liters (95 US gal.; 79.1 Imp. gal) |
| Battery | Two 12V, CCA 950A |
| Cabin type | Cab standard with air-conditioning |
| Engine | |
| Engine model | CDC |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 8.3 L, 8,267 cm2, (504.5 cu·in) |
| Bore and stroke | 114.0 mm X 135.0 mm (4.49 in X 5.31 in) |
| Compression ratio | 16.5:1 |
| Horsepower | 197.7 PS (145.4 kW; 195.0 HP) at 2,200 rpm |
| Starter | Electric |
| Oil capacity: | 20.8 L (22 US. qt, 18.3 Imp. qt.) |
| Coolant capacity: | 26.5 L (28 US. qt, 23.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Differential hydraulic wet disc |
| Differential lock | Electric rear |
| Transmission model | – |
| Transmission type | Full power shift with hydraulic wet disc clutch |
| Gears | 18 forward and 4 reverse |
| Speed | Forward: 32.8 kmh (20.4 mph) Reverse: 11.9 (7.4 mph) |
| Tires | |
| Front tires | Ag: 14L-16.1 |
| Rear tires | Ag: 20.8R-42 |
| Three-Point Hitch | |
| Category | III |
| Control type | Electronic lower-link draft sensing |
| Lift capacity (at ends) | 5,785 kg (12,755 lbs) 6,780 kg (14,950 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent with electro-hydraulic wet disc clutch |
| Rear PTO speed | 1000 rpm |
| Hydraulic system | |
| Hydraulic type | Closed center pressure flow compensated (PFC) |
| Hydraulic capacity | 172.2 L (45.5 US. gal, 37.9 Imp. gal.) |
| Pressure | 2300 psi (158.6 bar) |
| Valves | 2 to 4 |
| Pump flow | 25.0 gpm (94.6 lpm) |
| Total flow | 29.0 gpm (109.8 lpm) |
