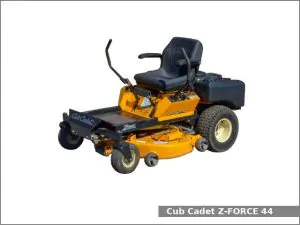

Cub Cadet Z-Force 44

Cub Cadet Z-Force 44The Cub Cadet Z-Force 44 is a 2WD zero-turn mower from the Z-Force series. This tractor was manufactured by Cub Cadet (a part of MTD) during 2004. The Cub Cadet Z-Force 44 is equipped with a 0.7 L (40.0 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet Z-Force 44 zero-turn mower used the Briggs and Stratton 406577 engine. It is a 0.7 L, 656 cm2, (40.0 cu·in) V-twin natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,300 rpm of output power.

The Cub Cadet Z-Force 44 is equipped with power steering, an open operator station and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Cub Cadet Z-Force 44 Specifications

General Specifications
ModelCub Cadet Z-Force 44
Length1,750 mm (68.9 in)
Width
Height
Wheel base1,140 mm (44.9 in)
Weight
Fuel tank capacity18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery12V, CCA 275A
Cabin typeOpen operator station
Engine
Engine modelBriggs and Stratton 406577
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 656 cm2, (40.0 cu·in)
Bore and stroke75.0 mm X 73.0 mm (2.95 in X 2.87 in)
Horsepower20.3 PS (14.9 kW; 20.0 HP) at 3,300 rpm
StarterElectric
Oil capacity:1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Brakes
Transmission modelHydro-Gear
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.3 kmh (7.0 mph) Reverse: 6.4 kmh (4.0 mph)
Tires
Front tires Lawn/turf: 11x4x5
Rear tires Lawn/turf: 18×8.5×8
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
