Cub Cadet Z-Force 50 KH

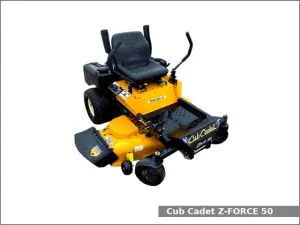

Cub Cadet Z-Force 50 KHThe Cub Cadet Z-Force 50 KH is a 2WD zero-turn mower from the Z-Force series. This tractor was manufactured by Cub Cadet (a part of MTD) in from 2005 to 2009.

The Cub Cadet Z-Force 50 KH is equipped with one of two engines: a 674 cc (41.1 cu·in) two-cylinder gasoline engine or a 725 cc (44.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The tractor could be equipped with the following engines:

  • Kohler Command PRO CV23S. It is a 0.7 L, 674 cm2, (41.1 cu·in) V-twin natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 23.3 PS (17.1 kW; 22.9 HP) at 3,600 rpm of output power.
  • Kohler Courage PRO SV820S. It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 67.0 mm (2.64 in). The compression ratio rating is 9.0:1. This engine produced 23.3 PS (17.1 kW; 22.9 HP) at 3,600 rpm of output power.

The Cub Cadet Z-Force 50 KH is equipped with power steering, an open operator station and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Cub Cadet Z-Force 50 KH Specifications

General Specifications
ModelCub Cadet Z-Force 50 KH
Length1,770 mm (69.7 in)
Width1,520 mm (59.8 in)
Height
Wheel base1,090 mm (42.9 in)
Weight282 kg (622 lbs)
Fuel tank capacity18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery12V, CCA 275A
Cabin typeOpen operator station
Engine
Engine modelKohler Command PRO CV23S
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 674 cm2, (41.1 cu·in)
Bore and stroke80.0 mm X 67.0 mm (3.15 in X 2.64 in)
Compression ratio8.5:1
Horsepower23.3 PS (17.1 kW; 23.0 HP) at 3,600 rpm
Torque54.3 N·m (5.5 kg·m, 40 ft·lb) at 2,200 rpm
StarterElectric
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RC12YC
Engine
Engine modelKohler Courage PRO SV820S
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio9.0:1
Horsepower23.3 PS (17.1 kW; 23.0 HP) at 3,600 rpm
Torque58.3 N·m (5.9 kg·m, 43 ft·lb) at 2,800 rpm
StarterElectric
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RC12YC
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Brakes
Transmission modelHydro-Gear ZT2800
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 5.6 kmh (3.5 mph)
Transmission oil capacity4.7 L (1.2 US. gal, 1 Imp. gal.)
Tires
Front tires Ag: 11×4-5
Rear tires Ag: 18×9.5-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
