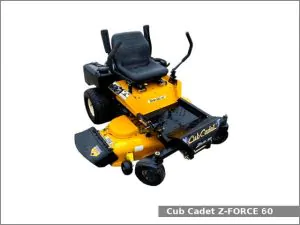

The Cub Cadet Z-Force 60 KH is a 2WD zero-turn mower from the Z-Force series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2006 to 2007. The Cub Cadet Z-Force 60 KH is equipped with a 0.7 L (41.1 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet Z-Force 60 KH zero-turn mower used the Kohler Command PRO CV23S engine. It is a 0.7 L, 674 cm2, (41.1 cu·in) V-twin natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.
The Cub Cadet Z-Force 60 KH is equipped with power steering, open operator station and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.
Cub Cadet Z-Force 60 KH Specifications
General Specifications | |
Model | Cub Cadet Z-Force 60 KH |
Length | 1,980 mm (78 in) |
Width | 1,775 mm (69.9 in) |
Height | – |
Wheel base | 1,100 mm (43.3 in) |
Weight | 382 kg (842 lbs) |
Fuel tank capacity | 18.9 liters (5 US gal.; 4.2 Imp. gal) |
Battery | 12V, CCA 275A |
Cabin type | Open operator station |
Engine | |
Engine model | Kohler Command PRO CV23S |
Engine type | Four-stroke, air-cooled, V-twin |
Cylinders | 2 |
Fuel type | Gasoline |
Displacement | 0.7 L, 674 cm2, (41.1 cu·in) |
Bore and stroke | 80.0 mm X 67.0 mm (3.15 in X 2.64 in) |
Compression ratio | 8.5:1 |
Horsepower | 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm |
Torque | 54.3 N·m (5.5 kg·m, 40 ft·lb) at 2,200 rpm |
Starter | Electric |
Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
Spark plug | Champion RC12YC |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power |
Brakes | – |
Transmission model | Hydro-Gear ZT2800 |
Transmission type | Hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 11.3 kmh (7 mph) Reverse: 6.4 kmh (4 mph) |
Transmission oil capacity | 4.7 L (1.2 US. gal, 1 Imp. gal.) |
Tires | |
Front tires | Ag: 11×4-5 |
Rear tires | Ag: 23×9.5-12 |
PTO (Power take-off shaft) | |
Middle PTO type | Independent with electric clutch |
Middle PTO speed | – |
