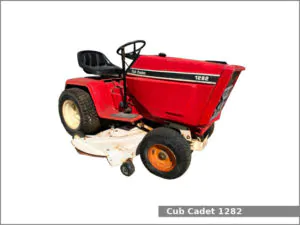

The Cub Cadet 1282 is a 2WD lawn and garden tractor from the CCC 82 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 1982 to 1985. The Cub Cadet 1282 is equipped with a 0.5 L (29.0 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet 1282 garden tractor used the Kohler K301 engine. It is a 0.5 L, 476 cm2, (29.0 cu·in) single-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 2,200 rpm of output power and 29.8 N·m (3 kg·m, 22 ft·lb) at 2,100 rpm.
The Cub Cadet 1282 is equipped with manual steering, wet disc brakes, open operator station, and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet 1282 garden tractor:
- Cub Cadet 960 mm (38 in) mower deck with manual lift
- Cub Cadet 1,110 mm (44 in) mower deck with manual lift
- Cub Cadet 1,270 mm (50 in) mower deck with manual lift
Cub Cadet 1282 Specifications
| General Specifications | |
| Model | Cub Cadet 1282 |
| Length | 1,820 mm (71.7 in) |
| Width | 950 mm (37.4 in) |
| Height | 1,090 mm (42.9 in) |
| Wheel base | 1,110 mm (43.7 in) |
| Ground clearance | 150 mm (5.9 in) |
| Weight | 298 kg (657 lbs) |
| Fuel tank capacity | 15.0 liters (4 US gal.; 3.3 Imp. gal) |
| Battery | 12V, CCA 200A, 32Ah |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler K301 |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.5 L, 476 cm2, (29.0 cu·in) |
| Bore and stroke | 86.0 mm X 83.0 mm (3.39 in X 3.27 in) |
| Horsepower | 12.1 PS (8.9 kW; 11.9 HP) at 2,200 rpm |
| Torque | 29.8 N·m (3 kg·m, 22 ft·lb) at 2,100 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Wet disc |
| Transmission model | Sundstrand |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph) |
| Tires | |
| Front tires | Lawn/turf: 16×16.50-8 |
| Rear tires | Lawn/turf: 23×10.50-12 |
| Three-Point Hitch | |
| Caterogy | 0 (optional) |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
