Cub Cadet 1861

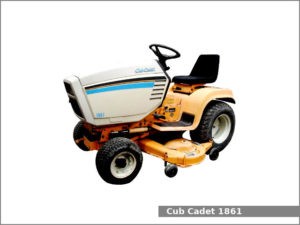

Cub Cadet 1861The Cub Cadet 1861 is a 2WD lawn and garden tractor manufactured by Cub Cadet (a part of MTD) from 1991 to 1992. The Cub Cadet 1861 is equipped with a 0.7 L (42.2 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 1861 garden tractor used the Kohler Magnum M18 engine. It is a 0.7 L, 691 cm2, (42.2 cu·in) two-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) of output power.

The Cub Cadet 1861 is equipped with manual steering, disc brakes, open operator station and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 1861 garden tractor:

  • Mid-mount Cub Cadet 42 in (1,060 mm) mower deck with hydraulic lift
  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with hydraulic lift
  • Mid-mount Cub Cadet 46 in (1,160 mm) mower deck with hydraulic lift
  • Mid-mount Cub Cadet 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount Cub Cadet 54 in (1,370 mm) blade
  • Front-mount Cub Cadet 45 in (1,150 mm) two-stage snowblower

Cub Cadet 1861 Specifications

General Specifications
ModelCub Cadet 1861
Length1,820 mm (71.7 in)
Width950 mm (37.4 in)
Height1,110 mm (43.7 in)
Wheel base1,180 mm (46.5 in)
Ground clearance150 mm (5.9 in)
Weight379 kg (836 lbs)
Fuel tank capacity18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery12V, CCA 440A
Cabin typeOpen operator station
Engine
Engine modelKohler Magnum M18
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 691 cm2, (42.2 cu·in)
Bore and stroke79.0 mm X 70.0 mm (3.11 in X 2.76 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP)
StarterElectric
Oil typeSAE 10W-30, 10W-40
Oil capacity:1.7 L (1.8 US. qt, 1.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDisc
Transmission model
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph) Reverse: 6.4 (4 mph)
Tires
Front tiresLawn/turf: 16×6.50-8
Rear tiresLawn/turf: 23×10.50-12
Three-Point Hitch
Caterogy0
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO speed
