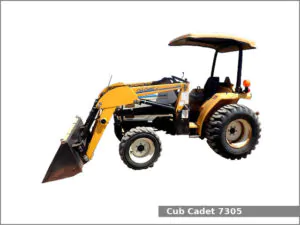

The Cub Cadet 7305 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Cub Cadet from 1998 to 2003. The Cub Cadet 7305 is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Cub Cadet 7305 compact utility tractor used the Mitsubishi engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 30.5 PS (22.4 kW; 30.0 HP) at 2,750 rpm of output power.
The Cub Cadet 7305 is equipped with power steering, mechanical wet disc brakes, two-post foldable ROPS, and 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet 7305 compact utility tractor:
- Mid-mount Cub Cadet 1,520 mm (60 in) mower deck
- Mid-mount Cub Cadet 1,820 mm (72 in) mower deck
- Cub Cadet 476 loader
- Cub Cadet 408 backhoe
Cub Cadet 7305 Specifications
General Specifications | |
Model | Cub Cadet 7305 |
Length | 2,920 mm (115 in) |
Width | 1,370 mm (53.9 in) |
Height (ROPS) | 2,140 mm (84.3 in) |
Wheel base | 1,700 mm (66.9 in) |
Ground clearance | 320 mm (12.6 in) |
Weight (shipping) | 1,220 kg (2,690 lbs) |
Fuel tank capacity | 30.0 liters (7.9 US gal.; 6.6 Imp. gal) |
Battery | 12V, CCA 500A |
Cabin type | Two-post foldable ROPS |
Engine | |
Engine model | Mitsubishi |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 1.5 L, 1,496 cm2, (91.3 cu·in) |
Bore and stroke | 84.0 mm X 90.0 mm (3.31 in X 3.54 in) |
Compression ratio | 18.0:1 |
Horsepower | 30.5 PS (22.4 kW; 30 HP) at 2,750 rpm |
Starter | Electric |
Oil capacity: | 4.7 L (5 US. qt, 4.1 Imp. qt.) |
Coolant capacity: | 6.3 L (6.7 US. qt, 5.5 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×4 MFWD 4WD |
Steering type | Power |
Brakes | Mechanical wet disc |
Differential lock | Mechanical differential lock |
Transmission model | – |
Transmission type | Hydrostatic |
Gears | Infinite (3-range) forward and reverse |
Transmission oil capacity | 22.0 L (5.8 US. gal, 4.8 Imp. gal.) |
Tires | |
Front tires | Ag: 7.2-16 Lawn/turf: 27×10.5-15 |
Rear tires | Ag: 12.4-24 Lawn/turf: 41×14-20 |
Three-Point Hitch | |
Category | I |
Control type | Position with optional draft control |
Lift capacity (at 610 mm/24 in) | 750 kg (1,650 lbs) |
PTO (Power take-off shaft) | |
Middle PTO type | Live |
Middle PTO speed | 2000 rpm |
Rear PTO type | Live |
Rear PTO speed | 540 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Pressure | 2133 psi (147.1 bar) |
Valves | 1 or 2 |
Pump flow | 7.9 gpm (29.9 lpm) |
Steering flow | 3.6 gpm (13.6 lpm) |
Total flow | 11.5 gpm (43.5 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
