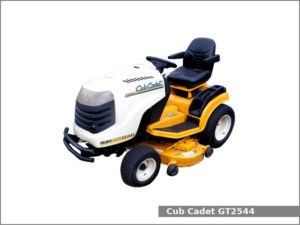

The Cub Cadet GT2544 is a 2WD lawn and garden tractor from the 2500 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2005 to 2010. The Cub Cadet GT2544 is equipped with a 0.6 L (38.1 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet GT2544 garden tractor used the Kohler Command engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) V-twin natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of output power.
The Cub Cadet GT 2544 is equipped with power steering, disc brakes, open operator station, and 8.1 liters (2.12 US gal.; 1.8 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet GT 2544 garden tractor:
- Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blade and manual spring-assisted lift
- Front-mount Cub Cadet 190-302 42 in (1,060 mm) blade
- Front-mount Cub Cadet 190-341 42 in (1,060 mm) two-stage snow blower
Cub Cadet GT2544 Specifications
| General Specifications | |
| Model | Cub Cadet GT 2544 |
| Length | 1,820 mm (71.7 in) |
| Width | 1,245 mm (49 in) |
| Height | 1,065 mm (41.9 in) |
| Wheel base | 1,190 mm (46.9 in) |
| Ground clearance | 150 mm (5.9 in) |
| Weight | 362 kg (798 lbs) |
| Fuel tank capacity | 8.1 liters (2.1 US gal.; 1.8 Imp. gal) |
| Battery | 12V, CCA 275A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler Command |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.6 L, 624 cm2, (38.1 cu·in) |
| Bore and stroke | 77.0 mm X 67.0 mm (3.03 in X 2.64 in) |
| Horsepower | 21.4 PS (15.7 kW; 21.0 HP) |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Disc |
| Transmission model | Hydro-Gear BDU-10 |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 9.3 kmh (5.8 mph) Reverse: 5.6 (3.5 mph) |
| Transmission oil capacity | 5.7 L (1.5 US. gal, 1.3 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 16×6.5-8 |
| Rear tires | Lawn/turf: 23×9.5-12 |
| Hitch | |
| Caterogy | Sleeve hitch (optional) |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
