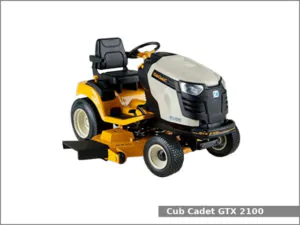

The Cub Cadet GTX 2100 is a 2WD garden tractor from the 2000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2011 to 2014. The Cub Cadet GTX 2100 is equipped with a 0.7 L (41.1 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet GTX 2100 garden tractor used the Kohler Command CH680 engine. It is a 0.7 L, 673 cm2, (41.1 cu·in) two-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 66.0 mm (2.6 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.
The Cub Cadet GTX 2100 is equipped with electronic power steering, mechanical disc brakes, an open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet GTX 2100 garden tractor:
- Mid-mount Cub Cadet 1,060 mm (42 in) mower deck with 2-blades and electric lift
- Mid-mount Cub Cadet 1,210 mm (48 in) mower deck with 3-blades and electric lift
- Mid-mount Cub Cadet 1,270 mm (50 in) mower deck with 3-blades and electric lift
- Mid-mount Cub Cadet 1,370 mm (54 in) mower deck with 3-blades and electric lift
- Front-mount Cub Cadet 1,160 mm (46 in) blade with manual lift and angle
- Front-mount Cub Cadet 1,210 mm (48 in) two-stage snow blower
Cub Cadet GTX 2100 Specifications
| General Specifications | |
| Model | Cub Cadet GTX 2100 |
| Length | 1,930 mm (76 in) |
| Width | 1,085 mm (42.7 in) |
| Height | 1,200 mm (47.2 in) |
| Wheel base | 1,280 mm (50.4 in) |
| Ground clearance | 150 mm (5.9 in) |
| Weight | 327 kg (721 lbs) |
| Fuel tank capacity | 17.0 liters (4.5 US gal.; 3.7 Imp. gal) |
| Battery | 12V, CCA 275A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler Command CH680 |
| Engine type | Four-stroke, air-cooled, V |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 673 cm2, (41.1 cu·in) |
| Bore and stroke | 81.0 mm X 66.0 mm (3.19 in X 2.6 in) |
| Horsepower | 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm |
| Starter | Electric |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Electronic power |
| Brakes | Mechanical disc |
| Transmission model | Hydro-Gear BDU-10 |
| Transmission type | Shaft-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 10.5 kmh (6.5 mph) Reverse: 5.6 kmh (3.5 mph) |
| Transmission oil capacity | 5.4 L (1.4 US. gal, 1.2 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 16×6.5-8 |
| Rear tires | Lawn/turf: 23×9.5-12 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
