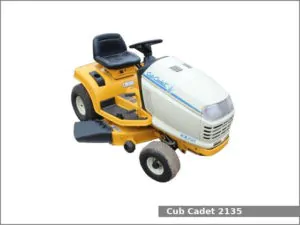

The Cub Cadet HDS 2135 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 1994 to 1998. The Cub Cadet HDS 2135 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet HDS 2135 lawn tractor used the Kohler Command CH12.5 engine. It is a 0.4 L, 398 cm2, (24.3 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm of maximum output power.
The Cub Cadet HDS 2135 is equipped with manual steering, internal expanding brakes, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.
Following attachments are available for Cub Cadet HDS 2135 lawn tractor:
- Mid-mount Cub Cadet 38 38 in (960 mm) mower deck with 2-blades and manual lift
- Front-mount Cub Cadet 190-302 42 in (1,060 mm) blade
- Front-mount Cub Cadet 190-303 40 in (1,010 mm) two-stage snowblower
- Rear-mount Cub Cadet 190-304 28 in (710 mm) tiller with electric lift
Cub Cadet HDS 2135 Specifications
| General Specifications | |
| Model | Cub Cadet HDS 2135 |
| Length | 1,820 mm (71.7 in) |
| Width | 1,140 mm (44.9 in) |
| Height | 1,060 mm (41.7 in) |
| Wheel base | 1,190 mm (46.9 in) |
| Weight | 255 kg (562 lbs) |
| Fuel tank capacity | 11.4 liters (3 US gal.; 2.5 Imp. gal) |
| Battery | 12V CCA: 275A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler Command CH12.5 |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.4 L, 398 cm2, (24.3 cu·in) |
| Bore and stroke | 87.0 mm X 67.0 mm (3.43 in X 2.64 in) |
| Compression ratio | 8.5:1 |
| Horsepower | 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm |
| Torque | 20.5 N·m (2.1 kg·m, 15.1 ft·lb) at 2,500 rpm |
| Starter | Electric |
| Oil type | SAE 10W-30, API: SG, SH, SJ or |
| Oil capacity: | 1.9 L (2.01 US. qt, 1.67 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Internal expanding |
| Transmission model | – |
| Transmission type | Shaft-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 9.3 kmh (5.8 mph) Reverse: 4.8 (3 mph) |
| Transmission oil capacity | 7.1 L (7.5 US. qt, 6.25 Imp. qt.) |
| Tires | |
| Front tires | Lawn/turf: 15×6-6 |
| Rear tires | Lawn/turf: 20×9-8 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO spped | – |
