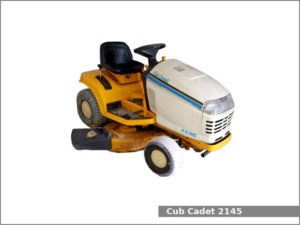

Cub Cadet HDS 2145

Cub Cadet HDS 2145The Cub Cadet HDS 2145 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 1994 to 1995. The Cub Cadet HDS 2145 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet HDS 2145 lawn tractor used the Onan Elite engine. It is a 0.4 L, 388 cm2, (23.7 cu·in) single-cylinder natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet HDS 2145 is equipped with manual steering, internal expanding brakes, open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank and mid-mount 42 in (1,060 mm) mower deck with 2-blades.

Cub Cadet HDS 2145 Specifications

General Specifications
ModelCub Cadet HDS 2145
Length1,820 mm (71.7 in)
Width1,290 mm (50.8 in)
Height1,060 mm (41.7 in)
Wheel base1,190 mm (46.9 in)
Weight–
Fuel tank capacity11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelOnan Elite
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.4 L, 388 cm2, (23.7 cu·in)
Bore and stroke84.0 mm X 70.0 mm (3.31 in X 2.76 in)
Horsepower14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
StarterElectric
Oil capacity:0.9 L (0.95 US. qt, 0.79 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesInternal expanding
Transmission model
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 4.8 (3 mph)
Tires
Front tiresLawn/turf: 15×6-6
Rear tiresLawn/turf: 20×9-8
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO spped–
