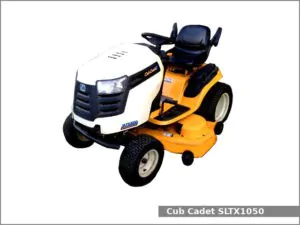

The Cub Cadet SLTX1050 is a 2WD lawn tractor from the LTX 1000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2009 to 2014. The Cub Cadet Super LTX 1050 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet SLTX1050 lawn tractor used the Kohler Courage SV730 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) of maximum output power.
The Cub Cadet SLTX1050 is equipped with the manual sector and pinion steering, open operator station and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet SLTX 1050 lawn tractor:
- Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades with manual lift
- Front-mount Cub Cadet 190-833 46 in (1,160 mm) blade
- Front-mount Cub Cadet 190-032 42 in (1,060 mm) dual-stage snow blower with manual lift
Cub Cadet SLTX1050 Specifications
| General Specifications | |
| Model | Cub Cadet SLTX1050 |
| Length | 1,750 mm (68.9 in) |
| Width | – |
| Height | – |
| Wheel base | 1,200 mm (47.2 in) |
| Weight | 248 kg (547 lbs) |
| Fuel tank capacity | 12.5 liters (3.3 US gal.; 2.7 Imp. gal) |
| Battery | 12V, CCA: 260A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler Courage SV730 |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 724 cm2, (44.2 cu·in) |
| Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
| Horsepower | 25.3 PS (18.6 kW; 25.0 HP) |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.6 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual sector and pinion |
| Brakes | – |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph) |
| Transmission oil capacity | 1.9 L (0.5 US. gal, 0.4 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 15×6.5×8 |
| Rear tires | Lawn/turf: 22×9.5×12 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
