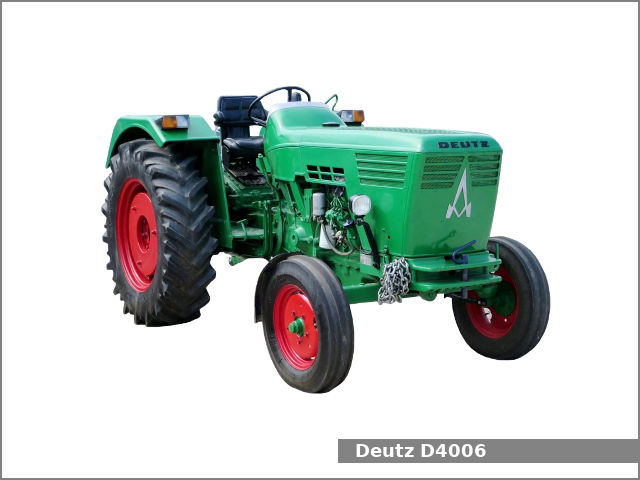

The Deutz D 4006 is a 2WD/4WD utility tractor from the 06 series. This tractor was manufactured by Deutz from 1968 to 1981. The Deutz D 4006 is equipped with a 2.8 L (172.5 cu·in) single-cylinder diesel engine and one of three transmission variants.
The Deutz D4006 utility tractor used the Deutz F3L 912 engine. It is a 2.8 L, 2,826 cm2, (172.5 cu·in) single-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 35.5 PS (26.1 kW; 35.0 HP) at 2,150 rpm of output power.
The Deutz D 4006 is equipped with manual (2WD) or hydraulic power (4WD) steering, open operator station, ROPS or Cab (optional) and 26.1 liters (6.9 US gal.; 5.7 Imp. gal) fuel tank.
Deutz D 4006 Specifications
| General Specifications | |
| Model | Deutz D 4006 |
| Length | 3,420 mm (134.6 in) |
| Width | – |
| Height | – |
| Wheel base | 1,990 mm (78.3 in) |
| Weight | 2WD: 2,040 kg (4,497 lbs) 4WD: 2,270 kg (5,004 lbs) |
| Fuel tank capacity | 26.1 liters (6.9 US gal.; 5.7 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station, ROPS or Cab (optional) |
| Engine | |
| Engine model | Deutz F3L 912 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 1 |
| Fuel type | Diesel |
| Displacement | 2.8 L, 2,826 cm2, (172.5 cu·in) |
| Bore and stroke | 100.0 mm X 120.0 mm (3.94 in X 4.72 in) |
| Horsepower | 35.5 PS (26.1 kW; 35.0 HP) at 2,150 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Manual (2WD) or hydraulic power (4WD) |
| Brakes | |
| Transmission model | – |
| Transmission type | – |
| Gears | 8 forward and 2 reverse |
| Transmission model | – |
| Transmission type | – |
| Gears | 8 forward and 4 reverse |
| Transmission model | |
| Transmission type | Synchromesh (optional for D4006A – 4WD) |
| Gears | 12 forward and 4 reverse |
| Tires | |
| Front tires | Ag: 6.50-16 (2WD), 7.50-18 (4WD) |
| Rear tires | Ag: 12.4-32 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity | 1,560 kg (3,440 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live or independent |
| Rear PTO speed | 540, 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pump flow | 6.7 gpm (25.4 lpm) |
