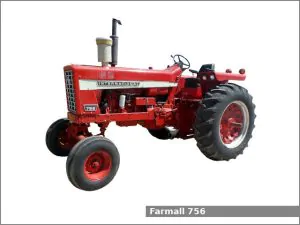

The Farmall 756 is a 2WD or 4WD row-crop tractor manufactured by Farmall (a part of International Harvester) from 1967 to 1971.
The Farmall 756 is equipped with one of two engines: a 5.1 L (310.0 cu·in) six-cylinder diesel engine or a 4.8 L (291.0 cu·in) six-cylinder gasoline/LP-gas engine and one of two transmissions: a gear type transmission with 8 forward and 4 reverse gears and dry disc clutch or a torque amplifier transmission with 16 forward and 8 reverse gears.
The tractor could be equipped with the following engines:
- International Harvester D310. It is a 5.1 L, 5,080 cm2, (310.0 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 111.0 mm (4.37 in) of the piston stroke. The compression ratio rating is 16.0:1.
- International Harvester C-291. It is a 4.8 L, 4,768 cm2, (291.0 cu·in) six-cylinder natural aspirated gasoline/LP-gas engine. The cylinder bore is 95.0 mm (3.74 in) and the piston stroke is 112.0 mm (4.41 in). The compression ratio rating is 7.6:1.
The Farmall 756 is equipped with hydrostatic power steering, independent hydraulic disc brakes, open operator station or cab (optional) and 125.0 liters (33 US gal.; 27.5 Imp. gal) fuel tank for gasoline or diesel fuel and 147.6 liters (39.0 US gal, 32.5 Imp. gal) for LP-gas.
Farmall 756 Specifications
| General Specifications | |
| Model | Farmall 756 |
| Length | 4,160 mm (163.8 in) |
| Width | 2,330 mm (91.7 in) |
| Height (steering wheel) | 2,080 mm (81.9 in) |
| Wheel base | 2,660 mm (104.7 in) |
| Weight (shipping) | 3,790 kg (8,356 lbs) |
| Fuel tank capacity | Gasoline/diesel: 125.0 liters (33 US gal.; 27.5 Imp. gal) LP-gas: 147.6 liters (39.0 US gal, 32.5 Imp. gal) |
| Battery | Diesel: Two 6V, 130Ah; Gas/LP-gas: One 12V, 60Ah |
| Cabin type | Open operator station or Cab (optional) |
| Engine | |
| Engine model | International Harvester D310 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 5.1 L, 5,080 cm2, (310.0 cu·in) |
| Bore and stroke | 98.0 mm X 111.0 mm (3.86 in X 4.37 in) |
| Compression ratio | 16.0:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 11.4 L (12 US. qt, 10 Imp. qt.) |
| Coolant capacity: | 22.2 L (23.5 US. qt, 19.5 Imp. qt.) |
| Engine | |
| Engine model | International Harvester C-291 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Gasoline/LP-gas |
| Displacement | 4.8 L, 4,768 cm2, (291.0 cu·in) |
| Bore and stroke | 95.0 mm X 112.0 mm (3.74 in X 4.41 in) |
| Compression ratio | 7.6:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 8.5 L (9 US. qt, 7.5 Imp. qt.) |
| Coolant capacity: | 19.4 L (20.5 US. qt, 17.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD (optional) |
| Steering type | Hydrostatic power |
| Brakes | Independent hydraulic disc |
| Transmission model | – |
| Transmission type | Gear type with dry disc clutch |
| Gears | 8 forward and 4 reverse |
| Speed | Forward: 29.8 kmh (18.5 mph) Reverse: 14.5 kmh (9 mph) |
| Transmission oil capacity | 64.4 L (17 US. gal, 14.2 Imp. gal.) |
| Transmission model | – |
| Transmission type | Torque amplifier |
| Gears | 16 forward and 8 reverse |
| Speed | Forward: 29.8 kmh (18.5 mph) Reverse: 14.5 kmh (9 mph) |
| Transmission oil capacity | 64.4 L (17 US. gal, 14.2 Imp. gal.) |
| Tires | |
| Front tires | Ag: 6.50-16 |
| Rear tires | Ag: 15.5-38 |
| Three-Point Hitch | |
| Category | II |
| Type | IH Fast Hitch |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 1000, 540/1000 rpm |
