Fiat 400

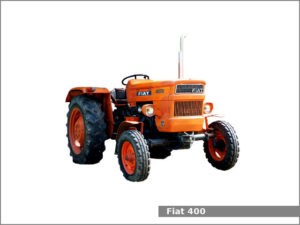

Fiat 400The Fiat 400 is a 2WD utility tractor manufactured by Fiat from 1968 to 1971. The Fiat 400 is equipped with a 2.2 L (136.6 cu·in) three-cylinder diesel engine and a gear type transmission with 6 forward and 2 reverse gears.

The Fiat 400 utility tractor used the Fiat 853 engine. It is a 2.2 L, 2,238 cm2, (136.6 cu·in) three-cylinder natural aspirated diesel engine with 95.0 mm (3.74 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 38.5 PS (28.3 kW; 38.0 HP) at 2,200 rpm of output power.

Fiat 400 Specifications

General Specifications
ModelFiat 400
Length3,160 mm (124.4 in)
Width1,620 mm (63.8 in)
Height1,310 mm (51.6 in)
Wheel base1,920 mm (75.6 in)
Weight1,700 kg (3,748 lbs)
Fuel tank capacity
Battery12V
Cabin typeOpen operator station
Engine
Engine modelFiat 853
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.2 L, 2,238 cm2, (136.6 cu·in)
Bore and stroke95.0 mm X 110.0 mm (3.74 in X 4.33 in)
Horsepower38.5 PS (28.3 kW; 38.0 HP) at 2,200 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering type
Brakes
Transmission model
Transmission typeGear type
Gears6 forward and 2 reverse
Speed Forward: 28.9 kmh (18.0 mph) Reverse: 12.8 (8.0 mph)
Tires
Front tiresAg: 6.00-16 (2WD), 7.50-20 (4WD)
Rear tiresAg: 12.4-28
Three-Point Hitch
CaterogyI
Control type
Lift capacity (at ends)1,400 kg (3,090 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
