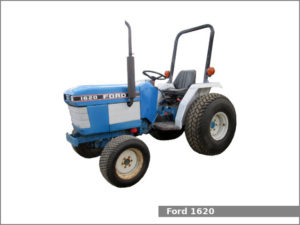

The Ford 1620 is a 2WD or 4WD compact utility tractor from the Twenty Compact series. This tractor was manufactured by Shibaura for distributor Ford in Japan from 1992 to 1997. The Ford 1620 is equipped with a 1.3 L (81.2 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.
The Ford 1620 compact utility tractor used the Shibaura engine. It is a 1.3 L, 1,331 cm2, (81.2 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. This engine produced 27.7 PS (20.4 kW; 27.4 HP) at 2,600 rpm of output power.
The Ford 1620 is equipped with power steering, wet disc type brakes, two-post ROPS, and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.
Following attachments are available for the Ford 1620 compact utility tractor:
- Mid-mount Ford 914 1,520 mm (60 in) mower deck
- Front-mount Ford 702C 1,980 mm (78 in) blade
- Front-mount Ford 715A 1,600 mm (63 in) snowblower
- Front-mount Ford 7108 loader
- Ford 757B backhoe
Ford 1620 Specifications
| General Specifications | |
| Model | Ford 1620 |
| Length | 2,850 mm (112.2 in) |
| Width | 1,220 mm (48 in) |
| Height | ROPS: 2,140 mm (84.3 in) |
| Wheel base | 1,600 mm (63 in) |
| Ground clearance | 2WD: 290 mm (11.4 in) 4WD: 280 mm (11.0 in) |
| Weight (shipping) | 2WD: 1,015 kg (2,238 lbs) 4WD: 1,065 kg (2,348 lbs) |
| Fuel tank capacity | 27.0 liters (7.1 US gal.; 5.9 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post ROPS |
| Engine | |
| Engine model | Shibaura |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.3 L, 1,331 cm2, (81.2 cu·in) |
| Bore and stroke | 84.0 mm X 80.0 mm (3.31 in X 3.15 in) |
| Horsepower | 27.7 PS (20.4 kW; 27.4 HP) at 2,600 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc type |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 20.6 kmh (12.8 mph) Reverse: (0 mph) |
| Tires | |
| Front tires | Ag: 5.00-15 (2WD), 6.00-14 (4WD) |
| Rear tires | Ag: 9.5-24 |
| Three-Point Hitch | |
| Category | I |
| Control type | Draft control |
| Lift capacity (at ends) | 875 kg (1,930 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | – |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pump flow | 7.1 gpm (26.9 lpm) |
| Steering flow | 2.9 gpm (11 lpm) |
| Total flow | 10.0 gpm (37.9 lpm) |
