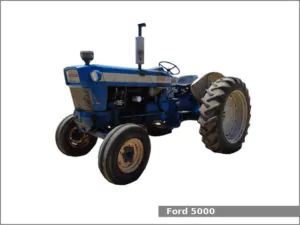

The Ford 5000 is a 2WD row-crop tractor manufactured by Ford in Highland Park, Michigan, USA from 1965 to 1976. This first generation was manufactured from 1965 to 1967.
The Ford 5000 is equipped with one of two engines: a 3.8 L (233.0 cu·in) four-cylinder gasoline engine or a 3.8 L (233.0 cu·in) four-cylinder diesel engine and one of three transmissions: a sliding gear transmission with 8 forward and 2 reverse gears, a full powershift transmission with 10 forward and 2 reverse gears or a partial power shift transmission with 16 forward and 4 reverse gears.
The tractor could be equipped with the following engines:
- Ford gasoline. It is a 3.8 L, 3,818 cm2, (233.0 cu·in) four-cylinder natural aspirated gasoline engine with 107.0 mm (4.21 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 8.0:1. This engine produced 70.0 PS (51.5 kW; 69.0 HP) at 2,100 rpm of output power.
- Ford diesel. It is a 3.8 L, 3,818 cm2, (233.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 107.0 mm (4.21 in) and the piston stroke is 107.0 mm (4.21 in). The compression ratio rating is 16.5:1. This engine produced 70.0 PS (51.5 kW; 69.0 HP) at 2,100 rpm of output power.
The Ford 5000 is equipped with the power assist (Ford 5100 model) or hydrostatic power steering (Ford 5200), differential mechanical wet disc brakes, an open operator station. and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.
Ford 5000 variants:
- 5100: general purpose
- 5200: row-crop
Ford 5000 Specifications
General Specifications | |
Model | Ford 5000 |
Length | General pu: 3,590 mm (141.3 in) Row-crop: 3,780 mm (148.8 in) |
Width | 1,730 mm (68.1 in) |
Height (steering wheel) | 1,610 mm (63.4 in) |
Wheel base | General pu: 2,220 mm (87.4 in) Row-crop: 2,430 mm (95.7 in) |
Ground clearance | 360 mm (14.2 in) |
Weight (shipping) | General purpose: 2,600 kg (5,732 lbs) Row-crop: 2,835 kg (6,250 lbs) |
Fuel tank capacity | 75.7 liters (20 US gal.; 16.7 Imp. gal) |
Battery | 12V, 80 Ah (Gas), 128 Ah (Diesel) |
Cabin type | Open operator station. |
Engine | |
Engine model | Ford |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Gasoline |
Displacement | 3.8 L, 3,818 cm2, (233.0 cu·in) |
Bore and stroke | 107.0 mm X 107.0 mm (4.21 in X 4.21 in) |
Compression ratio | 8.0:1 |
Horsepower | 70.0 PS (51.5 kW; 69.1 HP) at 2,100 rpm |
Starter | Electric |
Oil capacity: | 7.6 L (8 US. qt, 6.7 Imp. qt.) |
Coolant capacity: | 14.5 L (15.3 US. qt, 12.8 Imp. qt.) |
Engine | |
Engine model | Ford |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 3.8 L, 3,818 cm2, (233.0 cu·in) |
Bore and stroke | 107.0 mm X 107.0 mm (4.21 in X 4.21 in) |
Compression ratio | 16.5:1 |
Horsepower | 70.0 PS (51.5 kW; 69.1 HP) at 2,100 rpm |
Starter | Electric |
Oil capacity: | 7.6 L (8 US. qt, 6.7 Imp. qt.) |
Coolant capacity: | 14.5 L (15.3 US. qt, 12.8 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power assist or hydrostatic power |
Brakes | Differential mechanical wet disc |
Transmission model | – |
Transmission type | Sliding gear |
Gears | 8 forward and 2 reverse |
Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 13.0 kmh (8.1 mph) |
Transmission oil capacity | 10.2 L (2.7 US. gal, 2.2 Imp. gal.) |
Transmission model | Select-O-Speed |
Transmission type | Full power shift |
Gears | 10 forward and 2 reverse |
Speed | Forward: 26.4 kmh (16.4 mph) Reverse: 7.4 kmh (4.6 mph) |
Transmission oil capacity | 11.2 L (3 US. gal, 2.5 Imp. gal.) |
Transmission model | Dual Power |
Transmission type | Partial power shift |
Gears | 16 forward and 4 reverse |
Tires | |
Front tires | Ag: 6.00-16, 7.50-16 |
Rear tires | Ag: 12.4-38, 13.6-38, 15.5-38, 16.9-30, 18.4-26 |
Three-Point Hitch | |
Category | II/I |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540 or 540/1000 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Hydraulic capacity | 32.9 L (8.7 US. gal, 7.2 Imp. gal.) |
Pressure | 2500 psi (172.4 bar) |
Pump flow | 6.0 gpm (22.7 lpm) |
Steering flow | 4.5 gpm (17 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
