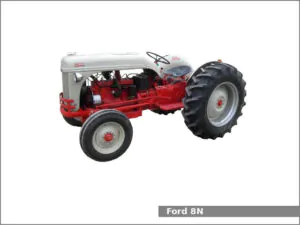

The Ford 8N is a 2WD utility tractor from the N series. This tractor was manufactured by the Ford in Highland Park, Michigan, USA from 1947 to 1952. The Ford 8N is equipped with 2.0 L, four-cylinders gasoline engine and one of two transmissions: constant mesh transmission with 4 forward and 1 reverse gear or Sherman combination transmission with 12 forward and 3 reverse gears.
The Ford 8N utility tractor used 2.0 L, 1,981 cm2, (120 cu·in) four-cylinders gasoline engine with 81.0 mm (3.19 in) of cylinder bore and 95.0 mm (3.74 in) of piston stroke. This engine produced 27.7 PS (20.4 kW; 27.4 HP) at rpm of PTO horsepower. The engine used L-head design with 2 valves per cylinder (8 in total); cast alloy statically and dynamically balanced crankshaft; aluminum alloy pistons and full-floating piston pins.
The Ford 8N is equipped with mechanical (ball-net gear) steering, manual drum brakes, open operator station and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank and one gallon in reserve tank.
Ford 8N Specifications
| General Specifications | |
| Model | Ford 8N |
| Length | 2,920 mm (115 in) |
| Width | 1,640 mm (64.6 in) |
| Height | 1,380 mm (54.3 in) |
| Wheel base | 1,770 mm (69.7 in) |
| Weight | 1,833 kg (4041.1 lbs) |
| Fuel tank capacity | 37.9 liters (10 US gal.; 8.3 Imp. gal) |
| Battery | 6V 80A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Ford |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.0 L, 1,981 cm2, (120 cu·in) |
| Bore and stroke | 81.0 mm X 95.0 mm (3.19 in X 3.74 in) |
| Compression ratio | 6.0:1, 6.5:1, 6.7:1 |
| Horsepower | 27.7 PS (20.4 kW; 27.4 HP) |
| Torque | 124.8 N·m (12.7 kg·m, 92 ft·lb) at 1,500 rpm |
| Starter | Electric |
| Oil capacity: | 5.7 L (6.02 US. qt, 5.02 Imp. qt.) |
| Coolant capacity: | 11.4 L (12.05 US. qt, 10.03 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Mechanical (ball-net gear) |
| Brakes | Manual drum |
| Transmission model | – |
| Transmission type | Constant mesh |
| Gears | 4 forward and 1 reverse |
| Speed | Forward: 21.9 kmh (13.6 mph) Reverse: 9.8 (6.1 mph) |
| Transmission oil capacity | 18.9 L (19.97 US. qt, 16.63 Imp. qt.) |
| Transmission model | – |
| Transmission type | Sherman combination transmission |
| Gears | 12 forward and 3 reverse |
| Speed | Forward: 37.2 kmh (23.1 mph) Reverse: 16.5 (10.3 mph) |
| Tires | |
| Front tires | Ag: 4.00-19; 6.00-16 |
| Rear tires | Ag: 10-28; 11.2-28 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity | 362 kg (798 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Transmission |
| Rear PTO spped | 545 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 18.9 L (19.97 US. qt, 16.63 Imp. qt.) |
| Pressure | 1700 psi (117.2 bar) |
| Pump flow | 2.85 gpm (10.8 lpm) |
Also getting ready to paint a 8N Ford Tractor…which company is a good source for authentic FORD spray paint in spray cans ?
Menards carries both Ford red and Ford grey. The red comes in a spray shaker can and the grey comes in pints. They are the authentic colors. It’s expensive but it’s good hard enamel paint. I spent about $200 to cover my tractor but it has front end loader. it probably would have been a little over $100 to cover the whole tractor
Where do I find the port to add brake fluid to my 49 Ford 8N Tractor??
what is the rated capacity of this ford 8n tractor? like towing or pushing capacity in thousands of pounds? can not seem to find it. thanks in advance.
We have an 8N and for the longest time, the positive side of the battery goes to ground and the negative goes to the starter. Its always worked this way but is this correct?
If it works, don’t change it! I’m sure you won’t anyway, without doing research. I will consult my 8N manual and look at my 8N when I get back to it next week.
This is kinda dating me(old,but not as old as thes tractors!) Many of the cars and tractors from the 20’S to the 50’s we’re 6v Positive ground systems,growing up we had 49 8N w the step up trans and Dearborn lift ,I converted it to 12v neg ground and used a internal regulated Delcotron alternator after that it would start easily even coldest winter,I would plow drivways all day back then!
how much can a ford 8n front loader bucket lift
8n is a positive ground.
