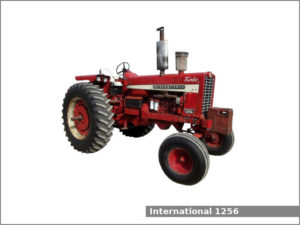

International Harvester 1256

International Harvester 1256The International Harvester 1256 is a 2WD or 4WD utility tractor manufactured by International Harvester in Rock Island, Illinois, USA from 1967 to 1969. The International 1256 is equipped with a 6.7 L (407.0 cu·in) six-cylinder diesel engine and one of two transmissions: a gear type transmission with 8 forward and 4 reverse gears or a partial power shift transmission with 16 forward and 8 reverse gears.

The IH 1256 utility tractor used the International Harvester DT407 engine. It is a 6.7 L, 6,669 cm2, (407.0 cu·in) six-cylinder turbocharged diesel engine with 110.0 mm (4.33 in) of the cylinder bore and 117.0 mm (4.61 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 114.6 PS (84.3 kW; 113.0 HP) at 2,400 rpm of PTO output power.

The International 1256 is equipped with power steering, independent hydraulic dry disc brakes, open operator station, or two-post ROPS, or cab with heat and air-conditioning (optional) and 159.0 liters (42 US gal.; 35 Imp. gal) fuel tank.

International Harvester 1256 Specifications

General Specifications
ModelInternational Harvester 1256
Length4,160 mm (163.8 in)
Width2,330 mm (91.7 in)
Height2,180 mm (85.8 in)
Wheel base2,660 mm (104.7 in)
Weight4,720 kg (10,406 lbs)
Fuel tank capacity159.0 liters (42 US gal.; 35 Imp. gal)
BatteryTwo 6V, CCA 204A
Cabin typeOpen operator station or two-post ROPS or cab with heat and air-conditioning (optional )
Engine
Engine modelInternational Harvester DT407
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement6.7 L, 6,669 cm2, (407.0 cu·in)
Bore and stroke110.0 mm X 117.0 mm (4.33 in X 4.61 in)
Compression ratio17.0:1
Horsepower114.6 PS (84.3 kW; 113.0 HP) at 2,400 rpm
StarterElectric
Oil capacity:14.2 L (15 US. qt, 12.5 Imp. qt.)
Coolant capacity:22.7 L (24 US. qt, 20 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesIndependent hydraulic dry disc
Transmission model
Transmission typeGear type
Gears8 forward and 4 reverse
Speed Forward: 31.4 kmh (19.5 mph) Reverse: 15.3 (9.5 mph)
Transmission oil capacity64.4 L (17 US. gal, 14.2 Imp. gal.)
Transmission modelTorque Amplifier
Transmission typePartial power shift
Gears16 forward and 8 reverse
Speed Forward: 31.4 kmh (19.5 mph) Reverse: 15.3 (9.5 mph)
Transmission oil capacity64.4 L (17 US. gal, 14.2 Imp. gal.)
Tires
Front tiresAg: 10.00-16
Rear tiresAg: 18.4-38
Three-Point Hitch
CaterogyIII/II
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1,000 rpm
Hydraulic system
Hydraulic typeOpen center
Valves1
Pump flow8.0 gpm (30.3 lpm)
