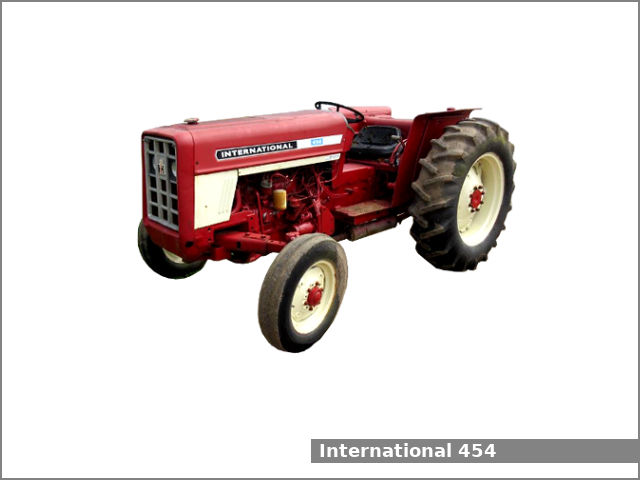

The International Harvester 454 is a 2WD utility tractor manufactured by International Harvester in Doncaster, England from 1970 to 1973.
The International Harvester 454 is equipped with one of two engines: a 2.6 L (157.0 cu·in) four-cylinder gasoline engine or a 2.9 L (179.0 cu·in) three-cylinder diesel engine and sliding gear transmission with 8 forward and 4 reverse gears.
The tractor could be equipped with the following engines:
- International Harvester C-157. It is a 2.6 L, 2,573 cm2, (157.0 cu·in) four-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 7.5:1. This engine produced 50.7 PS (37.3 kW; 50.0 HP) at 2,200 rpm of output power.
- International Harvester D-179. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 129.0 mm (5.08 in).
The IH 454 is equipped with power steering, independent hydraulic wet disc brakes, an open operator station, and 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank.
International Harvester 454 Specifications
General Specifications | |
Model | International Harvester 454 |
Length | 3,350 mm (131.9 in) |
Width (min) | 1,670 mm (65.7 in) |
Height (steering wheel) | 1,390 mm (54.7 in) |
Wheel base | 1,900 mm (74.8 in) |
Ground clearance | 250 mm (9.8 in) |
Weight (operating) | Gas: 1,995 kg (4,398 lbs) Diesel: 2,140 kg (4,718 lbs) |
Fuel tank capacity | 70.0 liters (18.5 US gal.; 15.4 Imp. gal) |
Battery | Gas: 12V, 40Ah Diesel: two 6V, 135Ah |
Cabin type | Open operator station |
Engine | |
Engine model | International Harvester C-157 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Gasoline |
Displacement | 2.6 L, 2,573 cm2, (157.0 cu·in) |
Bore and stroke | 86.0 mm X 112.0 mm (3.39 in X 4.41 in) |
Compression ratio | 7.5:1 |
Horsepower | 50.7 PS (37.3 kW; 50.0 HP) at 2,200 rpm |
Starter | Electric |
Oil capacity: | 6.6 L (7 US. qt, 5.8 Imp. qt.) |
Coolant capacity: | 10.9 L (11.5 US. qt, 9.6 Imp. qt.) |
Engine | |
Engine model | International Harvester D-179 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 2.9 L, 2,933 cm2, (179.0 cu·in) |
Bore and stroke | 98.0 mm X 129.0 mm (3.86 in X 5.08 in) |
Horsepower | – |
Starter | Electric |
Oil capacity: | 7.6 L (8 US. qt, 6.7 Imp. qt.) |
Coolant capacity: | 11.8 L (12.5 US. qt, 10.4 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power |
Brakes | Independent hydraulic wet disc |
Transmission model | – |
Transmission type | Sliding gear |
Gears | 8 forward and 4 reverse |
Speed | Forward: 33.0 kmh (20.5 mph) Reverse: 11.3 (7 mph) |
Transmission oil capacity | 34.1 L (9 US. gal, 7.5 Imp. gal.) |
Tires | |
Front tires | Ag: 6.00-16 |
Rear tires | Ag: 13.6-28 |
Three-Point Hitch | |
Caterogy | I |
Control type | – |
Lift capacity (at ends) | 1,500 kg (3,310 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540/1,000 rpm |
Hydraulic system | |
Hydraulic type | – |
Pump flow | 11.9 gpm (45 lpm) |
