International Harvester 484

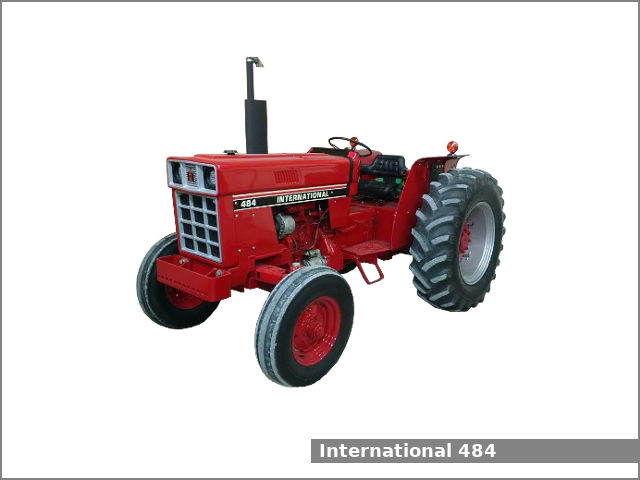

International Harvester 484The International Harvester 484 is a 2WD utility tractor from the 84 series. This tractor was manufactured by International Harvester in Doncaster, England from 1977 to 1982. The International Harvester 484 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a syncromesh with dry disc clutch transmission with 8 forward and 4 reverse gears.

The International 484 utility tractor used the International Harvester D179 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 129.0 mm (5.08 in) of the piston stroke. This engine produced 50.7 PS (37.3 kW; 50.0 HP) at 2,200 rpm of output power.

The IH 484 is equipped with power steering, independent hydraulic wet disc brakes, two-post fixed ROPS, and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.

International Harvester 484 Specifications

General Specifications
ModelInternational Harvester 484
Length Utility: 3,390 mm (133.5 in)
Low-profil: 3,510 mm (138.2 in)
Width Utility: 1,780 mm (70.1 in)
Low-profil: 1,990 mm (78.3 in)
Height (steering wheel) Utility: 1,540 mm (60.6 in)
Low-profil: 1,430 mm (56.3 in)
Wheel base Utility: 2,000 mm (78.7 in)
Low-profil: 1,980 mm (78 in)
Ground clearance Utility: 400 mm (15.7 in)
Low-profil: 270 mm (10.6 in)
Weight (shipping) Utility: 2,360 kg (5,203 lbs)
Low-profil: 2,330 kg (5,137 lbs)
Fuel tank capacity75.7 liters (20 US gal.; 16.7 Imp. gal)
Battery12V
Cabin typeTwo-post fixed ROPS
Engine
Engine modelInternational Harvester D179
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke98.0 mm X 129.0 mm (3.86 in X 5.08 in)
Horsepower50.7 PS (37.3 kW; 50.0 HP) at 2,200 rpm
StarterElectric
Oil capacity:6.4 L (6.8 US. qt, 5.6 Imp. qt.)
Coolant capacity:11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesIndependent hydraulic wet disc
Transmission model
Transmission typeSyncromesh with dry disc clutch
Gears8 forward and 4 reverse
Speed Forward: 26.8 kmh (16.7 mph) Reverse: 8.4 (5.2 mph)
Transmission oil capacity34.1 L (9 US. gal, 7.5 Imp. gal.)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 13.6-28
Three-Point Hitch
CategoryII
Control typePosition control and draft control
Lift capacity (at ends)1,405 kg (3,100 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic wet disc clutch
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity34.1 L (9 US. gal, 7.5 Imp. gal.)
Valves0 to 2
Total flow15.4 gpm (58.3 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
