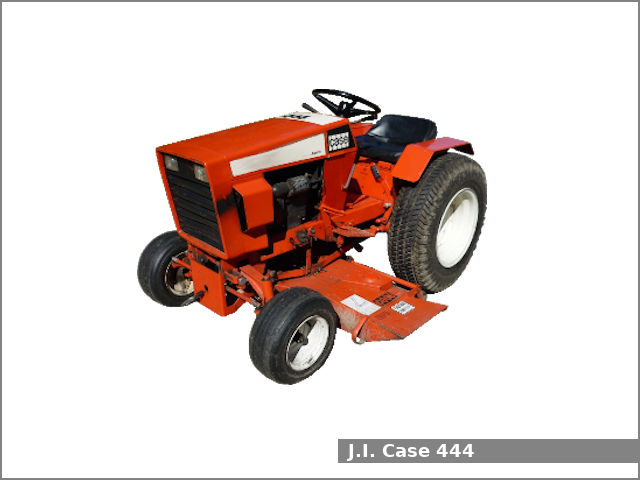

The J.I. Case 444 is a 2WD lawn and garden tractor from the 400 series. This tractor was manufactured by J.I. Case in Winneconne, Wisconsin, USA from 1969 to 1988. This second generation was manufactured from 1977 to 1988. The J.I. Case 444 is equipped with a 0.5 L (31.2 cu·in) single-cylinder gasoline engine and a hydraulic drive transmission with infinite forward and reverse (2-range) gears.
The J.I. Case 444 lawn and garden tractor used the Kohler K321AS engine. It is a 0.5 L, 512 cm2, (31.2 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. The compression ratio rating is 7.0:1. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of output power.
The J.I. Case 444 is equipped with manual steering, mechanical band brakes, an open operator station, and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.
Following attachments are available for the J.I. Case 444 lawn and garden tractor:
- Mid-mount J.I. Case L44: 1,110 mm (44 in) mower deck with 3-blade and hydraulic lift
- Mid-mount J.I. Case L45: 1,110 mm (44 in) mower deck with 3-blade and hydraulic lift
- Mid-mount J.I. Case L46: 1,210 mm (48 in) mower deck with 3-blade and hydraulic lift
- Front-mount J.I. Case K54: 1,370 mm (54 in) blade
- Front-mount J.I. Case P84: 1,210 mm (48 in) snowblower
J.I. Case 444 Specifications
General Specifications | |
Model | J.I. Case 444 |
Length | 1,820 mm (71.7 in) |
Width | 1,040 mm (40.9 in) |
Height (hood) | 970 mm (38.2 in) |
Wheel base | 1,210 mm (47.6 in) |
Ground clearance | 270 mm (10.6 in) |
Weight (shipping) | 320 kg (705 lbs) |
Fuel tank capacity | 11.4 liters (3 US gal.; 2.5 Imp. gal) |
Battery | 12V, 24Ah |
Cabin type | Open operator station |
Engine | |
Engine model | Kohler K321AS |
Engine type | Four-stroke, air-cooled, inline |
Cylinders | 1 |
Fuel type | Gasoline |
Displacement | 0.5 L, 512 cm2, (31.2 cu·in) |
Bore and stroke | 89.0 mm X 83.0 mm (3.5 in X 3.27 in) |
Compression ratio | 7.0:1 |
Horsepower | 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm |
Starter | Electric |
Oil type | SAE 30, 5W-20, 10W-30 |
Oil capacity: | 1.4 L (1.5 US. qt, 1.2 Imp. qt.) |
Spark plug | Champion RH10 |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | Mechanical band |
Transmission model | HY-Driv |
Transmission type | Hydraulic drive |
Gears | Infinite forward and reverse (2-range) |
Speed | Forward: 14.0 kmh (8.7 mph) |
Transmission oil capacity | 6.2 L (1.6 US. gal, 1.4 Imp. gal.) |
Tires | |
Front tires | Lawn/turf: 6.50-8 |
Rear tires | Lawn/turf: 8.00-16, 8.50-12, 10.50-12 |
Three-Point Hitch | |
Category | 0 (sleeve hitch) |
Control type | – |
Lift capacity (at ends) | – |
Hydraulic system | |
Hydraulic type | Open center |
Hydraulic capacity | 4.7 L (1.2 US. gal, 1 Imp. gal.) |
Pump flow | 8.0 gpm (30.3 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
