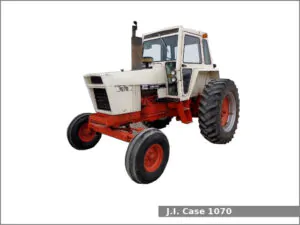

The J.I. Case 1070 is a 2WD row-crop tractor from the 70 series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1970 to 1978. The J.I. Case 1070 is equipped with a 7.4 L (451.0 cu·in) six-cylinder diesel engine and one of two transmissions: a unsynchronized gear type transmission with 8 forward and 2 reverse gears and with dry disc clutch or a partial power shift transmission with 12 forward and 4 reverse gears with with hydraulic wet discs clutch.
The Case 1070 row-crop tractor used the J.I. Case engine. It is a 7.4 L, 7,391 cm2, (451.0 cu·in) six-cylinder natural aspirated diesel engine with 111.0 mm (4.37 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 102.4 PS (75.3 kW; 101.0 HP) of output power.
The J.I. Case 1070 is equipped with power steering, differential hydraulic dry disc brakes, cab optional, and 189.3 liters (50 US gal.; 41.6 Imp. gal) fuel tank.
J.I. Case 1070 Specifications
General Specifications | |
Model | J.I. Case 1070 |
Length | 4,110 mm (161.8 in) |
Width | – |
Height (hood) | 1,980 mm (78 in) |
Wheel base | Wide-front: 2,740 mm (107.9 in) Tricycle: 2,560 mm (100.8 in) |
Ground clearance | 380 mm (15 in) |
Weight (operating) | 4,675 kg (10,307 lbs) |
Fuel tank capacity | 189.3 liters (50 US gal.; 41.6 Imp. gal) |
Battery | – |
Cabin type | Cab optional |
Engine | |
Engine model | J.I. Case |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 6 |
Fuel type | Diesel |
Displacement | 7.4 L, 7,391 cm2, (451.0 cu·in) |
Bore and stroke | 111.0 mm X 127.0 mm (4.37 in X 5 in) |
Compression ratio | 16.5:1 |
Horsepower | 102.4 PS (75.3 kW; 101.0 HP) |
Starter | Electric |
Coolant capacity: | 37.9 L (40 US. qt, 33.3 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power |
Brakes | Differential hydraulic dry disc |
Transmission model | – |
Transmission type | Unsynchronized gear with dry disc clutch |
Gears | 8 forward and 2 reverse |
Speed | Forward: 24.1 kmh (15 mph) Reverse: 12.2 (7.6 mph) |
Transmission model | Range Power Shift |
Transmission type | Partial power shift with hydraulic wet discs clutch |
Gears | 12 forward and 4 reverse |
Speed | Forward: 27.4 kmh (17 mph) Reverse: 27.4 (17 mph) |
Tires | |
Front tires | Ag: 10.00-16 |
Rear tires | Ag: 18.4-34 |
Three-Point Hitch | |
Category | II |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 1000, 540/1000 rpm |
Hydraulic system | |
Hydraulic type | – |
Valves | 2 |
Pump flow | 16.0 gpm (60.6 lpm) |
