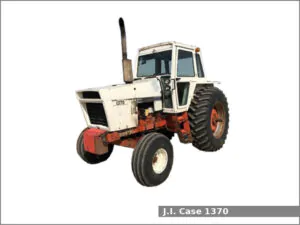

The J.I. Case 1370 is a 2WD row-crop tractor manufactured by J.I. Case in Racine, Wisconsin, USA from 1971 to 1978. The J.I. Case 1370 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and a partial power shift transmission with 12 forward and 3 reverse gears.
The J.I. Case 1370 row-crop tractor used the J.I. Case 504BDT engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 143.1 PS (105.2 kW; 141.0 HP) at 2,200 rpm or 2,100 rpm (for versions before 1973) of output power.
The J.I. Case 1370 is equipped with hydrostatic power steering, differential hydraulic wet discs brakes, cab standard or four-post ROPS and open-station (available), and 302.8 liters (80 US gal.; 66.6 Imp. gal) fuel tank.
J.I. Case 1370 Specifications
General Specifications | |
Model | J.I. Case 1370 |
Length | 4,620 mm (181.9 in) |
Width | 2,430 mm (95.7 in) |
Height | ROPS: 2,690 mm (105.9 in) Cab: 2,940 mm (115.7 in) |
Wheel base | 2,660 mm (104.7 in) |
Ground clearance | 400 mm (15.7 in) |
Weight | ROPS: 5,300 kg (11,684 lbs) Cab: 5,975 kg (13,173 lbs) |
Fuel tank capacity | 302.8 liters (80 US gal.; 66.6 Imp. gal) |
Battery | Two 12V, CCA 300A, Group 30H |
Cabin type | Cab standard or Four-post ROPS and open-station (available) |
Engine | |
Engine model | J.I. Case 504BDT |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 6 |
Fuel type | Diesel |
Displacement | 8.3 L, 8,259 cm2, (504.0 cu·in) |
Bore and stroke | 117.0 mm X 127.0 mm (4.61 in X 5 in) |
Compression ratio | 16.5:1 |
Horsepower | 143.1 PS (105.2 kW; 141.0 HP) at 2,200 or 2 rpm |
Starter | Electric |
Oil capacity: | 14.1 L (14.9 US. qt, 12.4 Imp. qt.) |
Coolant capacity: | 39.7 L (42 US. qt, 34.9 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Hydrostatic power |
Brakes | Differential hydraulic wet discs |
Differential lock | Hydraulic |
Transmission model | – |
Transmission type | Partial power shift |
Gears | 12 forward and 3 reverse |
Speed | Forward: 28.6 kmh (17.8 mph) Reverse: 13.5 (8.4 mph) |
Tires | |
Front tires | Ag: 10.00-16 |
Rear tires | Ag: 18.4-38 |
Three-Point Hitch | |
Category | III/II |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 1,000 rpm |
Hydraulic system | |
Hydraulic type | Variable flow (optional) |
Hydraulic capacity | 130.6 L (34.5 US. gal, 28.7 Imp. gal.) |
Pressure | 2050 psi (141.3 bar) |
Valves | 2 |
Pump flow | 20.0 gpm (75.7 lpm) |
Steering flow | 8.0 gpm (30.3 lpm) |
Total flow | 28.0 gpm (106.0 lpm) 48.0 gpm (181.7 lpm) – optional |
