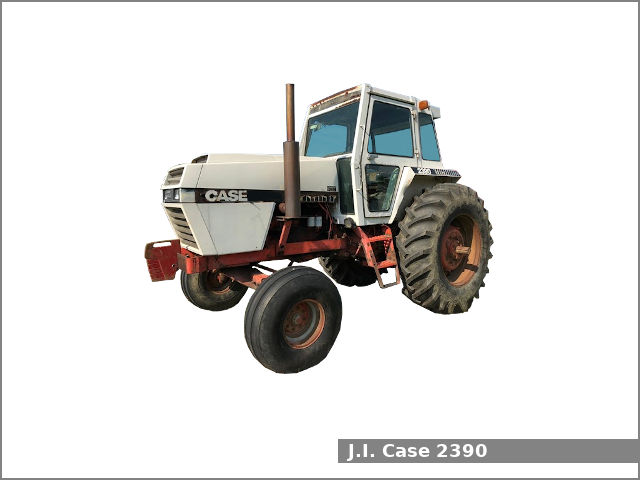

The J.I. Case 2390 is a 2WD row-crop tractor from the 90 series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1979 to 1983. The J.I. Case 2390 is equipped with an 8.3 L (504.0 cu·in) six-cylinder diesel engine and a partial power shift transmission with 12 forward and 3 reverse gears.
The J.I. Case 2390 row-crop tractor used the J.I. Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 15.8:1.
The Case 2390 is equipped with hydrostatic power steering, hydraulic wet disc brakes, Silent Guardian cab with air-conditioning, and 321.7 liters (85 US gal.; 70.8 Imp. gal) fuel tank.
J.I. Case 2390 Specifications
General Specifications | |
Model | J.I. Case 2390 |
Length | – |
Width | – |
Height | – |
Wheel base | 2,640 mm (103.9 in) |
Weight (operating) | 7,070 kg (15,587 lbs) |
Fuel tank capacity | 321.7 liters (85 US gal.; 70.8 Imp. gal) |
Battery | 12V |
Cabin type | Silent Guardian cab with air-conditioning |
Engine | |
Engine model | J.I. Case |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 6 |
Fuel type | Diesel |
Displacement | 8.3 L, 8,259 cm2, (504.0 cu·in) |
Bore and stroke | 117.0 mm X 127.0 mm (4.61 in X 5 in) |
Compression ratio | 15.8:1 |
Horsepower | 176.4 PS (129.7 KW; 174.0 HP) at 2,100 |
Starter | Electric |
Coolant capacity: | 41.6 L (44 US. qt, 36.6 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Hydrostatic power |
Brakes | Hydraulic wet disc |
Transmission model | – |
Transmission type | Partial power shift |
Gears | 12 forward and 3 reverse |
Tires | |
Front tires | Ag: 11.00-16 |
Rear tires | Ag: 18.4-38 |
Three-Point Hitch | |
Category | II |
Control type | – |
Lift capacity (at ends) | 3,628 kg (8,000 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 1,000 rpm |
Hydraulic system | |
Hydraulic type | Closed center |
Valves | 2 to 4 |
Pump flow | 23.0 gpm (87.1 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
