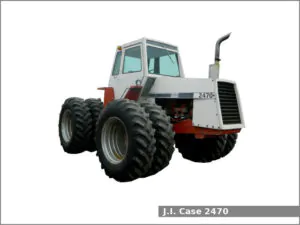

J.I. Case 2470

J.I. Case 2470The J.I. Case 2470 is a 4WD four-wheel drive tractor manufactured by J.I. Case in Racine, Wisconsin, USA from 1972 to 1979. The J.I. Case 2470 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and a partial powershift transmission with 12 forward and 2 reverse gears and hydraulic wet disc clutch.

The J.I. Case 2470 four-wheel drive tractor used the J.I. Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 15.8:1. This engine produced 176.5 PS (129.8 kW; 174.0 HP) at 2,200 rpm of output power.

The J.I. Case 2470 is equipped with hydrostatic front and hydraulic-assist rear steering, hydraulic wet disc brakes, cab, and 416.4 liters (110 US gal.; 91.6 Imp. gal) fuel tank.

J.I. Case 2470 Specifications

General Specifications
ModelJ.I. Case 2470
Length
Width
Height
Wheel base2,590 mm (102 in)
Weight (operating)9,290 kg (20,481 lbs)
Fuel tank capacity416.4 liters (110 US gal.; 91.6 Imp. gal)
BatteryTwo 12V
Cabin typeCab (standard)
Engine
Engine modelJ.I. Case
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke117.0 mm X 127.0 mm (4.61 in X 5 in)
Compression ratio15.8:1
Horsepower176.5 PS (129.8 kW; 174.0 HP) at 2,200 rpm
StarterElectric
Coolant capacity:41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis4×4 4WD
Steering typeHydrostatic front and hydraulic-assist rear
BrakesHydraulic wet disc
Transmission modelRange Power Shift
Transmission typePartial powershift with hydraulic wet disc clutch
Gears12 forward and 2 reverse
Speed Forward: 24.1 kmh (15 mph) Reverse: 8.0 (5 mph)
Tires
Front tires Ag: 18.4-34
Rear tires Ag: 18.4-34
Three-Point Hitch
CategoryIII
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1,000 rpm
Hydraulic system
Hydraulic typeOpen center
SCV flow17.0 gpm (64.4 lpm)
Total flow39.0 gpm (147.6 lpm)
