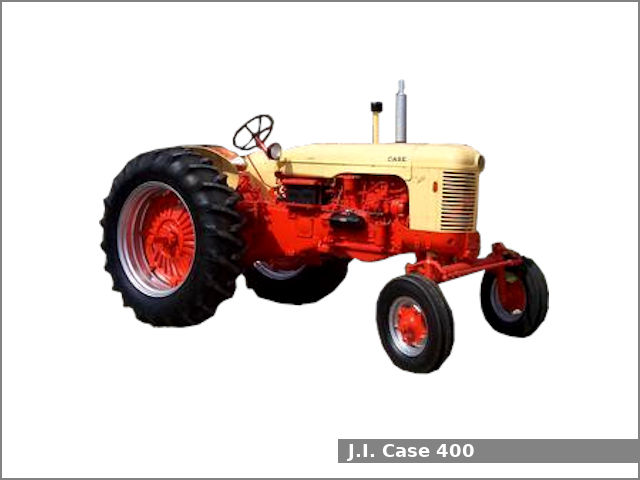

The J.I. Case 400 is a 2WD standard-tread tractor from the 400 series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1955 to 1957. The J.I. Case 400 is equipped with a 4.1 L (251.0 cu·in) four-cylinder diesel engine and a powr-range transmission with 8 forward and 2 reverse gears.
The J.I. Case 400 standard-tread tractor used the J.I. Case engine. It is a 4.1 L, 4,113 cm2, (251.0 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 15.0:1. This engine produced 50.7 PS (37.3 kW; 50.0 HP) of output power.
The J.I. Case 400 is equipped with manual or power (optional) steering, mechanical dry discs brakes, an open operator station, and 79.5 liters (21 US gal.; 17.5 Imp. gal) fuel tank.
J.I. Case 400 variants:
- 400: diesel standard
- 401: diesel row-crop
- 402: diesel vineyard
- 403: diesel high-crop
- 405: diesel orchard
- 410: gasoline standard
- 411: gasoline row-crop
- 413: gasoline high-crop
- 420: diesel industrial
J.I. Case 400 Specifications
General Specifications | |
Model | J.I. Case 400 |
Length | 3,370 mm (132.7 in) |
Width | 1,690 mm (66.5 in) |
Height (steering wheel) | 1,570 mm (61.8 in) |
Wheel base | 2,080 mm (81.9 in) |
Ground clearance | Front axle: 440 mm (17.3 in) |
Weight (shipping) | 2,720 kg (5,997 lbs) |
Fuel tank capacity | 79.5 liters (21 US gal.; 17.5 Imp. gal) |
Battery | Two 6V, 150Ah |
Cabin type | Open operator station |
Engine | |
Engine model | J.I. Case |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 4.1 L, 4,113 cm2, (251.0 cu·in) |
Bore and stroke | 102.0 mm X 127.0 mm (4.02 in X 5 in) |
Compression ratio | 15.0:1 |
Horsepower | 50.7 PS (37.3 kW; 50.0 HP) |
Starter | Electric |
Oil capacity: | 8.5 L (9 US. qt, 7.5 Imp. qt.) |
Coolant capacity: | 28.0 L (29.6 US. qt, 24.6 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual or power (optional) |
Brakes | Mechanical dry discs |
Transmission model | |
Transmission type | Powr-range |
Gears | 8 forward and 2 reverse |
Speed | Forward: 20.9 kmh (13.0 mph) Reverse: 9.5 kmh (5.9 mph) |
Tires | |
Front tires | Ag: 6.00-16, 7.50-16 |
Rear tires | Ag: 13-30, 14-30, 50″ (steel) |
Three-Point Hitch | |
Category | Case Eagle Hitch |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540 rpm |
Hydraulic system | |
Hydraulic type | – |
Hydraulic capacity | 8.5 L (2.2 US. gal, 1.9 Imp. gal.) With Eagle Hitch: 9.8 L (2.6 US. gal, 2.2 Imp. gal.) |
Pressure | 600 psi (41.4 bar) |
Valves | 2 (optional) |
Total flow | 12.0 gpm (45.4 lpm) |
