John Deere 110 (1963-1967)

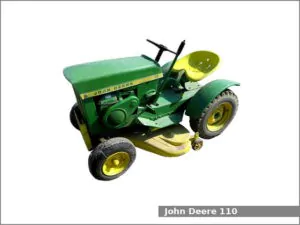

John Deere 110The John Deere 110 is a 2WD garden tractor from the 100 series. This tractor was manufactured by John Deere in Horicon, Wisconsin, USA from 1963 to 1974. The first generation was manufactured from 1963 to 1967, the second generation from 1968 to 1974.

The JD 110 is equipped with one of two engines: Kohler K161 or K181S single-cylinder gasoline engines and one fo two of transmissions: belt-driven gear transmission with mechanical CVT and 3 forward and 1 reverse gear or belt-driven gear transmission with mechanical CVT and 4 forward and 1 reverse gear.

This lawn tractor could be equipped with the following engines:

  • Kohler K161 (during the 1963 model year). It is a 0.3 L, 277 cm2, (16.9 cu·in) single-cylinder natural aspirated gasoline engine with 74.6 mm (2.94 in) of the cylinder bore and 63.5 mm (2.5 in) of the piston stroke. This engine produced 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of maximum output power.
  • Kohler K181S (1964-1967). It is a 0.3 L, 305 cm2, (18.3 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 74.6 mm (2.94 in) and the piston stroke is 69.8 mm (2.75 in). The compression ratio ratin is 6.8:1. This engine produced 8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm of maximum output power.

The JD 110 is equipped with manual steering, manually operated brakes, open operator station and 7.2 liters (1.9 US gal.; 1.6 Imp. gal) fuel tank.

Following attachments are available for the John Deere 110 garden tractor:

  • Mid-mount John Deere 38 (960 mm) mower deck with 3-blades
  • Front-mount John Deere 42 (1,060 mm) blade
  • Front-mount John Deere 36 (910 mm) snowblower

John Deere 110 Specifications

General Specifications
ModelJohn Deere 110
Length1,600 mm (63 in)
Width870 mm (34.3 in)
Height980 mm (38.6 in)
Wheel base1,100 mm (43.3 in)
Weight249 kg (549 lbs)
Fuel tank capacity7.2 liters (1.9 US gal.; 1.6 Imp. gal)
Battery12V, 24Ah
Cabin typeOpen operator station
Engine
Engine modelKohler K161
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.3 L, 277 cm2, (16.9 cu·in)
Bore and stroke74.6 mm X 63.5 mm (2.94 in X 2.5 in)
Horsepower7.1 PS (5.2 kW; 7 HP) at 3,600 rpm
StarterElectric
Oil typeAPI SF or SG, SAE: 30, 5W-20
Oil capacity:0.9 L (0.95 US. qt, 0.79 Imp. qt.)
Intake valve clearance0.15-0.20 mm (0.0059-0.0079 in)
Exhaust valve clearance0.43-0.48 mm (0.0169-0.0189 in)
Spark plugChampion RJ8C
Spark plug gap0.65 mm (0.0256 in)
Engine
Engine modelKohler K181S
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.3 L, 305 cm2, (18.3 cu·in)
Bore and stroke74.6 mm X 69.8 mm (2.94 in X 2.75 in)
Compression ratio6.8:1
Horsepower8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm
Starterelectric
Oil typeAPI SF or SG, SAE: 30, 5W-20
Oil capacity:0.9 L (0.95 US. qt, 0.79 Imp. qt.)
Intake valve clearance0.15-0.20 mm (0.0059-0.0079 in)
Exhaust valve clearance0.43-0.48 mm (0.0169-0.0189 in)
Spark plugChampion RJ8C
Spark plug gap0.65 mm (0.0256 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesManual
Transmission modelPeerless
Transmission typeBelt-driven gear with mechanical CVT
Gears3 forward and 1 reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 5.5 (3.4 mph)
Transmission oil capacity0.9 L (0.2 US. gal, 0.2 Imp. gal.)
Transmission modelPeerless 2300
Transmission typeBelt-driven gear with mechanical CVT
Gears4 forward and 1 reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 4.7 (2.9 mph)
Transmission oil capacity1.4 L (0.4 US. gal, 0.3 Imp. gal.)
Tires
Front tiresLawn/turf: 16×6.50-8 Ag: 4.80/4.00-8
Rear tiresLawn/turf: 8-12 Ag: 6-12
