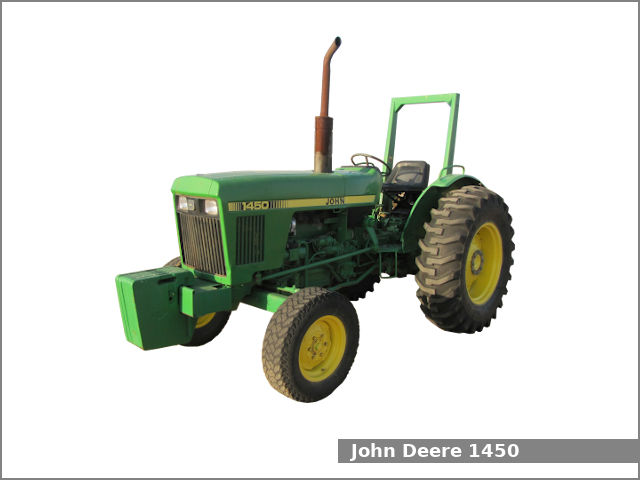

The John Deere 1450 is a 2WD or 4WD utility tractor manufactured by Yanmar for distributor John Deere in Japan from 1984 to 1988. The John Deere 1450 is equipped with a 3.1 L (190.3 cu·in) four-cylinder diesel engine and a sliding gear transmission with 9 forward and 3 reverse gears.
The JD 1450 utility tractor used the Yanmar engine. It is a 3.1 L, 3,118 cm2, (190.3 cu·in) four-cylinder natural aspirated diesel engine with 95.0 mm (3.74 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 2,400 rpm of output power.
The John Deere 1450 is equipped with power assist steering, differential hydraulic wet disc brakes, an open operator station with ROPS, and 80.0 liters (21.1 US gal.; 17.6 Imp. gal) fuel tank.
John Deere 1450 Specifications
| General Specifications | |
| Model | John Deere 1450 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 2,100 mm (82.7 in) |
| Weight (shipping) | 2WD: 2,000 kg (4,409 lbs) 4WD: 2,300 kg (5,071 lbs) |
| Fuel tank capacity | 80.0 liters (21.1 US gal.; 17.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station with ROPS |
| Engine | |
| Engine model | Yanmar |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.1 L, 3,118 cm2, (190.3 cu·in) |
| Bore and stroke | 95.0 mm X 110.0 mm (3.74 in X 4.33 in) |
| Compression ratio | 18.0:1 |
| Horsepower | 55.8 PS (41.0 kW; 55.0 HP) at 2,400 rpm |
| Starter | Electric |
| Oil capacity: | 12.0 L (12.7 US. qt, 10.6 Imp. qt.) |
| Coolant capacity: | 10.5 L (11.1 US. qt, 9.2 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power assist |
| Brakes | Differential hydraulic wet disc |
| Final drive | Planetary |
| Differential lock | Mechanical |
| Transmission model | – |
| Transmission type | Sliding gear |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 25.7 kmh (16 mph) Reverse: kmh (0 mph) |
| Tires | |
| Front tires | Ag: 6.50-16 |
| Rear tires | Ag: 14.9-28 |
| Three-Point Hitch | |
| Category | II/I |
| Control type | Center link sensing with position and draft contro |
| Lift capacity (at ends) | 1,200 kg (2650 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 0 to 2 |
| Total flow | 10.7 gpm (40.5 lpm) |
