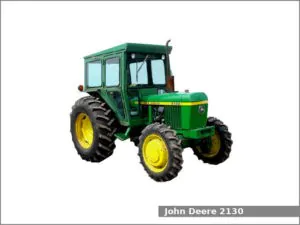

The John Deere 2130 is a 2WD or 4WD utility tractor manufactured by the John Deere in Mannheim, Baden-Württemberg, Germany from 1973 to 1977. The John Deere 2130 is equipped with a 3.9 L four-cylinder diesel engine and one of two transmissions with 8 forward and 4 reverse or 16 forward and 8 reverse gears.
The John Deere 2130 utility tractor used the John Deere engine. It is a 3.9 L, 3,917 cm2, (239.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 76.0 PS (55.9 kW; 75.0 HP) at 2,500 rpm of maximum output power.
The John Deere 2130 is equipped with manual recirculating ball bearing worm and nut steering (power was available as an option), hydraulic wet disc brakes, open operator station or cab and 90.0 liters (23.8 US gal.; 19.8 Imp. gal) fuel tank.
John Deere 2130 Specifications
| General Specifications | |
| Model | John Deere 2130 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | 2,720 kg (5,996 lbs) |
| Fuel tank capacity | 90.0 liters (23.8 US gal.; 19.8 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station or Cab (optional) |
| Engine | |
| Engine model | John Deere |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.9 L, 3917 cm2, (239 cu·in) |
| Bore and stroke | 106.0 mm X 110.0 mm (4.17 in X 4.33 in) |
| Compression ratio | 16.8:1 |
| Horsepower | 76.0 PS (55.9 kW; 75.0 HP) at 2,500 rpm |
| Torque | 246.0 N·m (25.1 kg·m, 181.3 ft·lb) at 1,400 rpm |
| Starter | Electric |
| Oil capacity: | 8.5 L (9 US. qt, 7.5 Imp. qt.) |
| Coolant capacity: | 11.5 L (12.2 US. qt, 10.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Manual recirculating ball bearing worm and nut or power (option) |
| Brakes | Hydraulic wet disc |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 8 forward and 4 reverse |
| Transmission oil capacity | 25.5 L (6.7 US. gal, 5.6 Imp. gal.) |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 16 forward and 8 reverse |
| Transmission oil capacity | 25.5 L (6.7 US. gal, 5.6 Imp. gal.) |
| Tires | |
| Front tires | Ag: – |
| Rear tires | Ag: 15.5-38 |
| PTO (Power take-off shaft) | |
| Rear PTO type | Transmission or independent (option) |
| Rear PTO spped | 540 or 540/1,000 rpm |
