John Deere 3046R

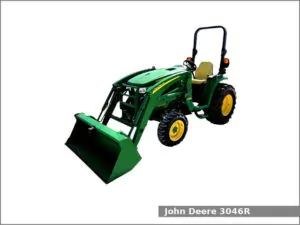

John Deere 3046RThe John Deere 3046R is a 4WD compact utility tractor from the 3R series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The JD 3046R is equipped with a 1.6 L three-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The John Deere 3046R compact utility tractor used the Yanmar 3TNV86 engine. It is a 1.6 L, 1,599 cm2, (97.6 cu·in) three-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 46.6 PS (34.3 kW; 46.0 HP) at 2,600 rpm of maximum output power.

The John Deere 3046R is equipped with power steering, wet disc brakes, two-post foldable ROPS or Cab with air-conditioning (optional) and 51.1 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank for ROPS version or 44.5 liters (11.8 US gal.; 9.8 Imp. gal) for Cab version.

Following attachments are available for the JD 3046R compact utility tractor:

  • Mid-mount John Deere 60D 60 in (1,540 mm) mower deck with 3-blades
  • Mid-mount John Deere 72D 72 in (1,840 mm) mower deck with 3-blades
  • John Deere H160 loader
  • John Deere H165 loader

John Deere 3046R Specifications

General Specifications
ModelJohn Deere 3046R
Length
Width
Height ROPS: 2,360 mm (92.9 in)
Cab: 2,150 mm (85.0 in)
Wheel base1,720 mm (67.7 in)
Weight ROPS: 1,315 kg (2,900 lbs)
Cab: 1,620 kg (3,570 lbs)
Fuel tank capacity ROPS: 51.1 liters (13.5 US gal.; 11.2 Imp. gal)
Cab: 44.5 liters (11.8 US gal.; 9.8 Imp. gal)
Battery12V, CCA 500A
Cabin typeTwo-post foldable ROPS or Cab with air-conditioning (optional)
Engine
Engine modelYanmar 3TNV86
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement1.6 L, 1,599 cm2, (97.6 cu·in)
Bore and stroke86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Compression ratio19.0:1
Horsepower46.6 PS (34.3 kW; 46 HP) at 2,600 rpm
StarterElectric
Oil capacity:5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: ROPS: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Cab: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typePower
BrakesWet disc
Final driveHelical gear
Transmission modeleHydro
Transmission typeHydrostatic
GearsInfinite (3-range) forward and reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: – (0 mph)
Transmission oil capacity25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Tires
Front tiresAg: 7.00-14
Rear tiresAg: 11.2-24
Rear Hitch
CaterogyI
Control typePosition control
Lift capacity (at ends)1,150 kg (2,540 lbs)
Front Hitch
Caterogy0
Control type
Lift capacity (at ends)590 kg (1,300 lbs)
PTO (Power take-off shaft)
Middle PTO typeIndependent with electro-hydraulic clutch
Middle PTO speed2,100 rpm
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity25.7 L (27.16 US. qt, 22.61 Imp. qt.)
Pump flow8.6 gpm (32.6 lpm)
Steering flow5.3 gpm (20.1 lpm)
Total flow13.9 gpm (52.6 lpm)
