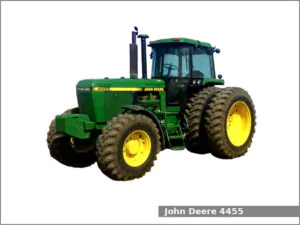

John Deere 4455

John Deere 4455The John Deere 4455 is a 2WD or 4WD row-crop tractor from the 4055 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA, and Saltillo, Mexico from 1988 to 1992. The John Deere 4455 is equipped with a 7.6 L (466.0 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with hydraulic wet disc clutch and 16 forward and 6 reverse gears or a full powershift transmission with hydraulic wet disc clutch and 15 forward and 4 reverse gears.

The John Deere 4455 row-crop tractor used the John Deere engine. It is a 7.6 L, 7,636 cm2, (466.0 cu·in) six-cylinder turbocharged diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 121.0 mm (4.76 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 190.4 PS (140.0 kW; 187.7 HP) of output power.

The JD 4455 is equipped with power steering, differential hydraulic wet disc brakes, Sound Guard cab, and 246.0 liters (65 US gal, 54.1 Imp. gal) fuel tank. The Mexican-built models were available four-post ROPS.

Following attachments are available for the JD 4455 row-crop tractor:

  • John Deere 158 loader
  • John Deere 265 loader
  • John Deere 280 loader
  • John Deere 840 loader

John Deere 4455 Specifications

General Specifications
ModelJohn Deere 4455
Length4,020 mm (158.3 in)
Width2,760 mm (108.7 in)
Height2,950 mm (116.1 in)
Wheel base 2WD: 2,710 mm (106.7 in)
4WD: 2,670 mm (105.3 in)
Weight 6,415 kg (14,145 lbs)
Fuel tank capacity246.0 liters (65 US gal, 54.1 Imp. gal)
BatteryTwo 12V, CCA: 925A
Cabin typeSound Guard cab
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement7.6 L, 7,636 cm2, (466.0 cu·in)
Bore and stroke116.0 mm X 121.0 mm (4.57 in X 4.76 in)
Compression ratio16.0:1
Horsepower190.4 PS (140.0 kW; 187.7 HP)
StarterElectric
Oil capacity:18.0 L (19 US. qt, 15.8 Imp. qt.)
Coolant capacity:25.6 L (27.1 US. qt, 22.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesDifferential hydraulic wet disc
Final driveInboard planetary
Transmission modelJohn Deere Quad Range
Transmission typePartial power shift with hydraulic wet disc clutch
Gears16 forward and 6 reverse
Speed Forward: 27.9 kmh (17.3 mph) Reverse: 17.6 (10.9 mph)
Transmission oil capacity 2WD: 60.6 L (16.0 US. gal, 13.3 Imp. gal.)
4WD: 65.0 L (17.2 US. gal, 14.3 Imp. gal.)
Transmission modelJohn Deere Power Shift
Transmission typeFull power shift with hydraulic wet disc clutch
Gears15 forward and 4 reverse
Speed Forward: 31.7 kmh (19.7 mph) Reverse: 10.6 (6.6 mph)
Transmission oil capacity 2WD: 51.0 L (13.5 US. gal, 11.2 Imp. gal.)
4WD: 60.0 L (15.9 US. gal, 13.2 Imp. gal.)
Tires
Front tiresAg: 2WD: 10.00-16, 4WD: 14.9-26
Rear tiresAg: 18.4-38
Three-Point Hitch
CaterogyIIIN/II
Control type
Lift capacity (at ends)2,495 kg (5,500 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic clutch
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeClosed center
Pressure2530 psi (174.4 bar)
Valves2 or 3
Pump flow26.5 gpm (100.3 lpm)
