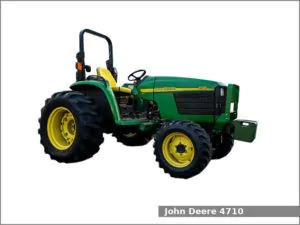

The John Deere 4710 is a 4WD compact utility tractor from the 4000 Ten Compact series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2003 to 2004. The JD 4710 is equipped with a 2.2 L four-cylinder diesel engine and one of two transmissions: power shuttle transmission with 12 forward and 12 reverse gears or hydrostatic transmission with infinite forward and reverse gears.
The John Deere 4710 compact utility tractor used the Yanmar 4TNE88 engine. It is a 2.2 L, 2,196 cm2, (134.0 cu·in) four-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 46.9 PS (34.5 kW; 46.3 HP) at 2,600 rpm of output power and 146.40 N·m (14.9 kg·m, 107.9 ft·lb) at 1,700 rpm of torque.
The JD 4710 is equipped with hydrostatic power steering, wet disc brakes, open operator station with ROPS and 47.3 liters (12.5 US gal.; 10.4 Imp. gal) fuel tank.
Following attachments are available for the John Deere 4710 compact utility tractor:
- Mid-mount John Deere 72 in (1,820 mm) mower deck with 3-blades
- John Deere 460 loader
John Deere 4710 Specifications
General Specifications | |
Model | John Deere 4710 |
Length | 3,420 mm (134.6 in) |
Width | 1,570 mm (61.8 in) |
Height | 2,320 mm (91.3 in) |
Wheel base | 1,810 mm (71.3 in) |
Weight | 1,564 kg (3,448 lbs) |
Fuel tank capacity | 47.3 liters (12.5 US gal.; 10.4 Imp. gal) |
Battery | 12V, CCA 690A |
Cabin type | Open operator station with ROPS |
Engine | |
Engine model | Yanmar 4TNE88 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 2.2 L, 2196 cm2, (134 cu·in) |
Bore and stroke | 88.0 mm X 90.0 mm (3.46 in X 3.54 in) |
Compression ratio | 18.0:1 |
Horsepower | 46.9 PS (34.5 kW; 46.3 HP) at 2,600 rpm |
Torque | 146.40 N·m (14.9 kg·m, 107.9 ft·lb) at 1,700 rpm |
Starter | Electric |
Oil capacity: | 4.8 L (5.1 US. qt, 4.2 Imp. qt.) |
Coolant capacity: | 6.4 L (6.8 US. qt, 5.6 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×4 MFWD 4WD |
Steering type | Hydrostatic power |
Brakes | Wet disc |
Transmission model | PowrReverser |
Transmission type | Power shuttle |
Gears | 12 forward and 12 reverse |
Speed | Forward: 27.7 kmh (17.2 mph) Reverse: 25.7 (16 mph) |
Transmission oil capacity | 36.6 L (9.7 US. gal, 8.1 Imp. gal.) |
Transmission model | eHydro |
Transmission type | Hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 27.0 (16.8 mph) |
Transmission oil capacity | 34.8 L (9.2 US. gal, 7.7 Imp. gal.) |
Tires | |
Front tires | Ag: 7.00-16, 8.00-16 |
Rear tires | Ag: 13.6-24, 13.6-28 |
Three-Point Hitch | |
Caterogy | I |
Control type | – |
Lift capacity (at ends) | 1,130 kg (2,500 lbs) |
PTO (Power take-off shaft) | |
Middle PTO type | Optional |
Middle PTO speed | 2,100 rpm |
Rear PTO type | Independent |
Rear PTO speed | – |
Hydraulic system | |
Hydraulic type | Open center |
Pressure | 5600 psi (386.1 bar) |
Pump flow | 10.6 gpm (40.1 lpm) |
Steering flow | 5.3 gpm (20.1 lpm) |
Total flow | 15.9 gpm (60.2 lpm) |
