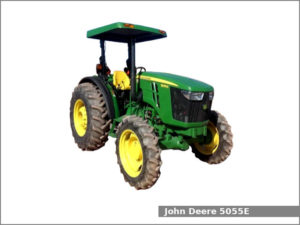

The John Deere 5055E is a 2WD or 4WD utility tractor from the 5E series. This tractor has benn manufactured by John Deere in Pune, Maharashtra, India since 2008. This third version has been manufactured since 2015. The JD 5055E is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 9 forward and 3 reverse gears and dry disc clutch or a power shuttle transmission with 12 forward and 12 reverse gears and wet disc clutch.
The JD 5055E utility tractor used the John Deere PowerTech 3029 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.9:1. This engine produced 59.8 PS (44.0 kW; 59.0 HP) at 2,100 rpm of output power.
The John Deere 5055E is equipped with power steering, hydraulic wet disc brakes, two-post foldable ROPS or Cab (optional), and 68.1 liters (18 US gal.; 15 Imp. gal) fuel tank for the ROPS version or 82.1 liters (21.7 US gal, 18.1 Imp. gal) for the cab version. This tractor could be equipped with the John Deere 512 or John Deere H240 MSL loader.
John Deere 5055E Specifications
| General Specifications | |
| Model | John Deere 5055E |
| Length | 3,500 mm (137.8 in) |
| Width | 1,450 mm (57.1 in) |
| Height | ROPS: 2,380 mm (93.7 in) Cab: 2,360 mm (92.9 in) |
| Wheel base | 2,040 mm (80.3 in) |
| Ground clearance | 2WD: 470 mm (18.5 in) 4WD: 340 mm (13.4 in) |
| Weight | 2WD ROPS: 2,050 kg (4,519 lbs) 4WD ROPS: 2,500 kg (5,512 lbs) |
| Fuel tank capacity | ROPS: 68.1 liters (18.0 US gal.; 15.0 Imp. gal) Cab: 82.1 liters (21.7 US gal, 18.1 Imp. gal) |
| Battery | 12V, CCA 623A |
| Cabin type | Two-post foldable ROPS or Cab (optional) |
| Engine | |
| Engine model | John Deere PowerTech 3029 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.9 L, 2,933 cm2, (179.0 cu·in) |
| Bore and stroke | 106.0 mm X 110.0 mm (4.17 in X 4.33 in) |
| Compression ratio | 16.9:1 |
| Horsepower | 59.8 PS (44.0 kW; 59.0 HP) at 2,100 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Hydraulic wet disc |
| Transmission model | Top-Shaft Synchronized (TSS) |
| Transmission type | Partially synchronized with dry disc clutch |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 26.7 kmh (16.6 mph) Reverse: 21.2 kmh (13.2 mph) |
| Transmission model | PowrReverser |
| Transmission type | Power shuttle with wet disc clutch |
| Gears | 12 forward and 12 reverse |
| Speed | Forward: 31.8 kmh (19.8 mph) Reverse: 34.6 kmh (21.5 mph) |
| Tires | |
| Front tires | Ag: 7.5-16 (2WD), 9.5-24 (4WD) |
| Rear tires | Ag: 14.9-28 |
| Three-Point Hitch | |
| Category | II |
| Control type | Position and top-link draft control |
| Lift capacity (at 610 mm / 24 in) | 1,447 kg (3,190 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 or 540/540E rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pump flow | 11.4 gpm (43.2 lpm) |
| Steering flow | 6.8 gpm (25.7 lpm) |
| Total flow | 18.2 gpm (68.9 lpm) |
