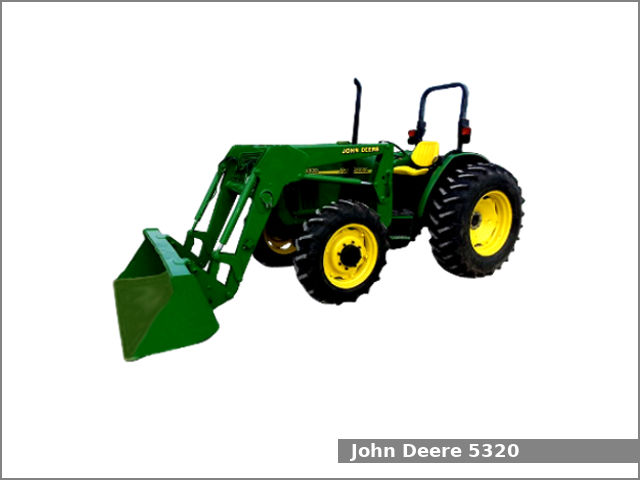

The John Deere 5320 is a 2WD or 4WD utility tractor from the 5000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2002 to 2004. The JD 5320 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: a collar shift transmission with 9 forward and 3 reverse gears, a partially synchronized transmission with 9 forward and 3 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.
The John Deere 5320 utility tractor used the John Deere 3029T engine. It is a 2.9 L, 2,934 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 64.9 PS (47.7 kW; 64.0 HP) at 2,400 rpm of output power and 195.0 N·m (19.9 kg·m, 143.7 ft·lb) at 1,400 rpm of torque.
The JD 5320 is equipped with hydrostatic power steering, hydraulic wet disc brakes, ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS), or cab.
Following attachments are available for the John Deere 5320 utility tractor:
- John Deere 510 loader
- John Deere 521 loader
- John Deere 541 loader
- John Deere 49 backhoe
John Deere 5320 Specifications
| General Specifications | |
| Model | John Deere 5320 |
| Length | 2WD with ROPS: 3,500 mm (137.8 in) 4WD with ROPS: 3,620 mm (142.6 in) 2WD with Cab: 3,540 mm (139.5 in) 4WD with Cab: 3,620 mm (142.0 in) |
| Width | ROPS:1,840 mm (72.4 in) Cab:1,790 mm (70.7 in) |
| Height | ROPS: 2,400 mm (94.5 in) IOOS: 2,600 mm (102.6 in) Cab: 2,490 mm (98.4 in) |
| Wheel base | ROPS: 2,040 mm (80.3 in) 2WD with Cab: 2,000 mm (79.0 in) 4WD with Cab: 2,030 mm (80.0 in) |
| Ground clearance | 2WD: 470 mm (18.5 in) 2WD: 420 mm (16.9 in) |
| Weight | 2WD with ROPS: 1,745 kg (3,847 lbs) 4WD with ROPS: 2,220 kg (4,890 lbs) 2WD with IOOS: 1,865 kg (4,115 lbs) 4WD with IOOS: 2,360 kg (5,205 lbs) 2WD with Cab: 2,390 kg (5,265 lbs) 4WD with Cab: 2,860 kg (6,305 lbs) |
| Fuel tank capacity | ROPS (early): 68.0 liters (18.0 US gal.; 15.0 Imp. gal) ROPS (later): 75.7 liters (20.0 US gal, 16.7 Imp. gal) IOOS or Cab (small): 102.2 liters (27.0 US gal, 22.5 Imp. gal) IOOS or Cab (large): 111.7 liters (29.5 US gal, 24.6 Imp. gal) |
| Battery | 12V, CCA 700A (early), 950A (later) |
| Cabin type | ROPS with straddle-mount platform, ROPS with isolated platform (IOOS) or cab. |
| Engine | |
| Engine model | John Deere 3029T |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.9 L, 2,934 cm2, (179.0 cu·in) |
| Bore and stroke | 106.0 mm X 110.0 mm (4.17 in X 4.33 in) |
| Compression ratio | 17.8:1 |
| Horsepower | 64.9 PS (47.7 kW; 64.0 HP) at 2,400 rpm |
| Torque | 195.0 N·m (19.9 kg·m, 143.7 ft·lb) at 1,400 rpm |
| Starter | Electric |
| Oil capacity: | 8.5 L (9 US. qt, 7.5 Imp. qt.) |
| Coolant capacity: | 9.5 L (10 US. qt, 8.4 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Transmission model | John Deere Collar Shift (CST) |
| Transmission type | Collar shift with dry disc clutch |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph) |
| Transmission oil capacity | 37.8 L (10 US. gal, 8.3 Imp. gal.) |
| Transmission model | John Deere SyncShuttle |
| Transmission type | Partially synchronized with dry disc clutch |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph) |
| Transmission oil capacity | 37.9 L (10 US. gal, 8.3 Imp. gal.) |
| Transmission model | John Deere PowrReverser |
| Transmission type | Power shuttle with wet disc clutch |
| Gears | 12 forward and 12 reverse |
| Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 31.4 (19.5 mph) |
| Transmission oil capacity | 43.5 L (11.5 US. gal, 9.6 Imp. gal.) |
| Tires | |
| Front tires | Ag: 7.50-16 |
| Rear tires | Ag: 14.9-28 |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | – |
| Lift capacity (at 610 mm / 24 in) | 1,530 kg (3,375 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540, 540/540E rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pressure | 2800 psi (193.1 bar) |
| Valves | 2 to 3 |
| Pump flow | 11.4 gpm (43.2 lpm) |
| Steering flow | 18.2 gpm (68.9 lpm) |
| Total flow | 6.8 gpm (25.7 lpm) |
