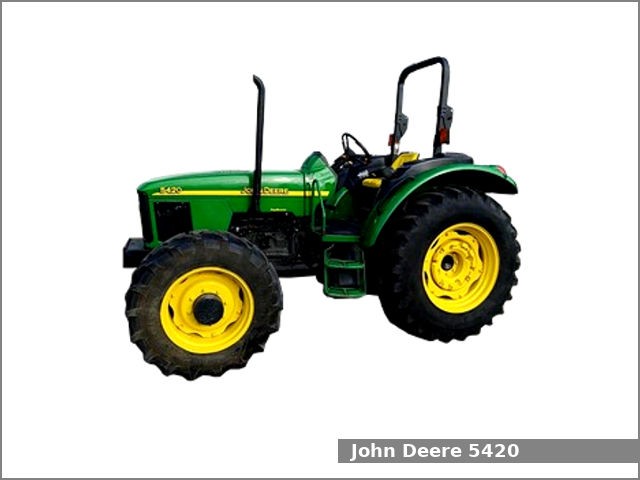

John Deere 5420The John Deere 5420 is a 2WD or 4WD utility tractor from the 5000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2002 to 2004. The John Deere 5420 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a collar shift transmission with dry disc clutch and 9 forward and 3 reverse gears, a partially synchronized transmission with dry disc clutch and 9 forward and 3 reverse gears or a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears.

The JD 5420 utility tractor used the John Deere 4045D engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.6:1. This engine produced 82.1 PS (60.4 kW; 81.0 HP) at 2,400 rpm of output power and 243.0 N·m (24.8 kg·m, 179.1 ft·lb) at 1,400 rpm of torque.

The John Deere 5420 is equipped with hydrostatic power steering, hydraulic wet disc brakes, ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS), or Cab.

Following attachments are available for the JD 5420 utility tractor:

  • John Deere 521 loader
  • John Deere 541 loader
  • John Deere 49 backhoe

John Deere 5420 Specifications

General Specifications
ModelJohn Deere 5420
Length ROPS: 3,840 mm (151.2 in)
2WD with Cab: 3,690 mm (145.5 in)
4WD with Cab: 3,750 mm (148.0 in)
Width ROPS: 1,880 mm (74.0 in)
Cab: 1,990 mm (78.4 in)
Height ROPS: 2,450 mm (96.5 in)
IOOS: 2,650 mm (104.6 in)
Cab: 2,550 mm (100.4 in)
Wheel base ROPS: 2,170 mm (85.4 in)
2WD with Cab: 2,150 mm (85.0 in)
4WD with Cab: 2,160 mm (86.0 in)
Ground clearance 2WD: 470 mm (18.5 in)
4WD: 440 mm (17.7 in)
Weight (shipping) 2WD with ROPS: 1,945 kg (4,285 lbs)
4WD with ROPS: 2,415 kg (5,325 lbs)
2WD with IOOS ROPS: 2,085 kg (4,600 lbs)
4WD with IOOS ROPS: 2,560 kg (5,640 lbs)
2WD with Cab: 2,585 kg (5,700 lbs)
4WD with Cab: 3,060 kg (6,740 lbs)
Fuel tank capacity ROPS (early): 68.1 liters (18.0 US gal.; 15.0 Imp. gal)
ROPS (late): 75.7 liters (20.0 US gal.; 16.7 Imp. gal)
IOOS/Cab (small): 102.2 liters (27.0 US gal.; 22.5 Imp. gal)
IOOS/Cab (large): 111.7 liters (29.5 US gal.; 24.6 Imp. gal)
Battery12V, CCA 700A (early) or 950A (late)
Cabin typeROPS with straddle-mount platform, ROPS with isolated platform (IOOS) or Cab.
Engine
Engine modelJohn Deere 4045D
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio17.6:1
Horsepower82.1 PS (60.4 kW; 81.0 HP) at 2,400 rpm
Torque243.0 N·m (24.8 kg·m, 179.1 ft·lb) at 1,400 rpm
StarterElectric
Oil capacity:8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity:10.5 L (11.1 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesHydraulic wet disc
Transmission model
Transmission typeCollar shift with dry disc clutch
Gears9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission modelSyncShuttle
Transmission typePartially synchronized with dry disc clutch
Gears9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission modelPowrReverser
Transmission typePower shuttle with wet disc clutch
Gears12 forward and 12 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 31.4 (19.5 mph)
Transmission oil capacity43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tiresAg: 7.50-16
Rear tiresAg: 16.9-30
Three-Point Hitch
CaterogyII/I
Control type
Lift capacity (at 610 mm/24 in)1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540, 540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2,800 psi (193.1 bar)
Valves2 to 3
Pump flow15.9 gpm (60.2 lpm)
Steering flow6.6 gpm (25 lpm)
Total flow22.5 gpm (85.2 lpm)
