John Deere 6220

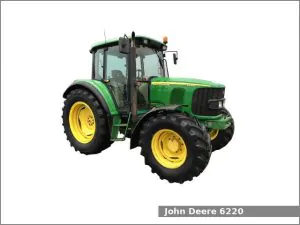

John Deere 6220The John Deere 6220 is a 2WD/4WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2002 to 2007.

The JD 6220 is equipped with one of two engines: a 4.5 L (276.0 cu·in) four-cylinder diesel engine or a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of four transmissions: a fully synchronized transmission with 12 forward and 4 reverse gears, a power shuttle transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 16 forward and 16 reverse gears or a partial power shift transmission with 24 forward and 24 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere PowerTech 4045TL071. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. This engine produced 91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm of output power.
  • John Deere PowerTech 4045TL272. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 127.0 mm (5.0 in). This engine produced 91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm of output power.

The John Deere 6220 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS or ConfortGard cab (optional) and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

John Deere 6220 Specifications

General Specifications
ModelJohn Deere 6220
Length4,130 mm (162.6 in)
Width1,560 mm (61.4 in)
Height2,490 mm (98 in)
Wheel base2,400 mm (94.5 in)
Ground clearance 2WD: 580 mm (22.8 in)
4WD: 370 mm (14.6 in)
Weight (shipping) 2WD ROPS: 3,935 kg (8,675 lbs)
2WD Cab: 4,165 kg (9,180 lbs)
4WD ROPS: 4,160 kg (9,170 lbs)
4WD Cab: 4,389 kg (9,680 lbs)
Fuel tank capacity 165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Optional: 185.1 liters (48.9 US gal.; 40.7 Imp. gal)
Battery12V
Cabin typeTwo-post ROPS or ConfortGard Cab (optional)
Engine
Engine modelJohn Deere PowerTech 4045TL071
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm
Torque298.3 N·m (30.4 kg·m, 219.8 ft·lb) at 1,500 rpm
StarterElectric
Oil capacity:15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity:13.6 L (14.4 US. qt, 12 Imp. qt.)
Engine
Engine modelJohn Deere PowerTech 4045TL272
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm
Torque381.0 N·m (38.9 kg·m, 280.8 ft·lb) at 1,500 rpm
StarterElectric
Oil capacity:15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity:13.6 L (14.4 US. qt, 12 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD (optional)
Steering typeHydrostatic power
BrakesHydraulic wet disc
Transmission modelJohn Deere SyncroPlus
Transmission typeFully synchronized with wet disc clutch
Gears12 forward and 4 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 19.8 kmh (12.3 mph)
Transmission oil capacity52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission modelJohn Deere SyncroPlus Power Reverser
Transmission typePower shuttle with wet disc clutch
Gears16 forward and 16 reverse
Speed Forward: 28.6 kmh (17.8 mph)
Transmission oil capacity52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission modelJohn Deere PowrQuad
Transmission typePartial power shift with wet disc clutch
Gears16 forward and 16 reverse
Speed Forward: 28.6 kmh (17.8 mph)
Transmission oil capacity49.0 L (12.9 US. gal, 10.8 Imp. gal.)
Transmission modelJohn Deere PowrQuad Plus
Transmission typePartial power shift with wet disc clutch
Gears24 forward and 24 reverse
Speed Forward: 37.5 kmh (23.3 mph)
Transmission oil capacity50.0 L (13.2 US. gal, 11.0 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 12.4-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
CategoryII
Control type
Lift capacity (at 610 mm/24 in)1,835 kg (4,045 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 or 540/1000 rpm
Hydraulic system
Hydraulic typePressue flow compensated
Pressure2900 psi (200 bar)
Valves1 to 4
Pump flow25.0 gpm (94.6 lpm)
