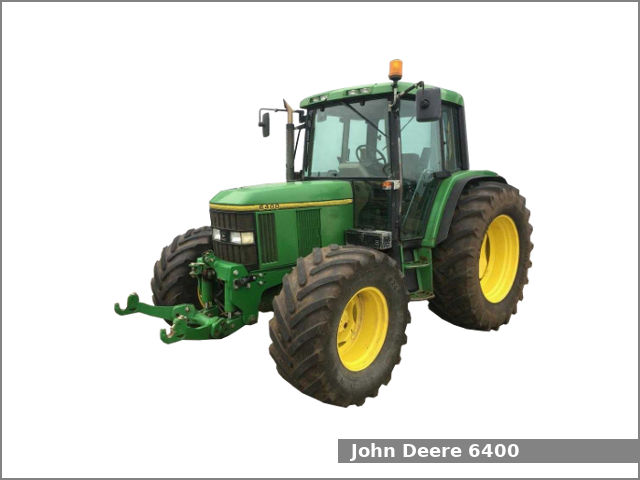

The John Deere 6400 is a 2WD or 4WD utility tractor from the 6000 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1992 to 1998. The JD 6400 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of two transmissions: a fully synchronized transmission with 12 forward and 4 reverse gears (21 forward and 7 reverse gears with creeper) or a partial power shift transmission with 16 forward and 16 reverse gears (28 forward and 28 reverse gears with creeper).
The JD 6400 utility tractor used the John Deere CD4045 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 86.2 PS (63.4 kW; 85.0 HP) at 2,300 rpm of PTO output power.
The John Deere 6400 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS or ComfortGard Cab (optional), and 109.8 liters (29 US gal.; 24.2 Imp. gal) fuel tank for the ROPS version or 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank for the cab version.
Following attachments are available for the John Deere 6400 utility tractor:
- John Deere 620 loader
- John Deere 640NSL loader
- John Deere 640SL loader
John Deere 6400 Specifications
General Specifications | |
Model | John Deere 6400 |
Length | – |
Width | – |
Height | – |
Wheel base | 2,400 mm (94.5 in) |
Ground clearance (front axle) | 4WD: 470 mm (18.5 in) High-Clear: 670 mm (26.4 in) |
Weight (shipping) | 2WD ROPS: 3,450 kg (7,605 lbs) 2WD Cab: 3,680 kg (8,115 lbs) 4WD ROPS: 3,740 kg (8,245 lbs) 4WD Cab: 3,970 kg (8,755 lbs) |
Fuel tank capacity | ROPS: 109.8 liters (29 US gal.; 24.2 Imp. gal) Cab: 165.0 liters (43.6 US gal.; 36.3 Imp. gal) |
Battery | 12V |
Cabin type | Two-post foldable ROPS or ComfortGard Cab (optional) |
Engine | |
Engine model | John Deere CD4045 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 4.5 L, 4,523 cm2, (276.0 cu·in) |
Bore and stroke | 106.0 mm X 127.0 mm (4.17 in X 5 in) |
Horsepower | 86.2 PS (63.4 kW; 85.0 HP) at 2,300 rpm |
Starter | Electric |
Oil capacity: | 12.1 L (12.8 US. qt, 10.6 Imp. qt.) |
Coolant capacity: | ROPS: 13.7 L (14.5 US. qt, 12.1 Imp. qt.) Cab: 17.5 L (18.5 US. qt, 15.4 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Hydrostatic power |
Brakes | Hydraulic wet disc |
Transmission model | John Deere SyncroPlus |
Transmission type | Fully synchronized with triple wet disc PermaClutch clutch |
Gears | 12 forward and 4 reverse |
Transmission model | John Deere PowrQuad |
Transmission type | Partial power shift with triple wet disc PermaClutch clutch |
Gears | 16 forward and 16 reverse |
Tires | |
Front tires | Ag: 7.50-18 (2WD), 13.6-24 (4WD), 13.6-38 (High-Clearance) |
Rear tires | Ag: 18.4-34 (2WD, 4WD), 13.6-46 (High-Clearance) |
Three-Point Hitch | |
Category | II |
Control type | Lower link draft sensing |
Lift capacity (at 610 mm / 24 in) | 2,685 kg (5,920 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540/1000 rpm |
Hydraulic system | |
Hydraulic type | Closed-center pressure flow compensated (PFC) |
Pressure | 2900 psi (199.9 bar) |
Valves | 1 to 5 |
Total flow | 18.7 gpm (70.8 lpm) Optional: 25.0 gpm (94.6 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
