John Deere 7220

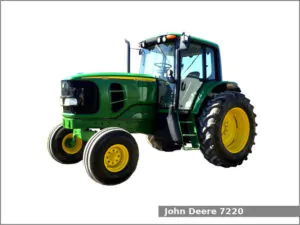

John Deere 7220The John Deere 7220 is a 2WD/4WD row-crop tractor from the 7020 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2003 to 2007. The JD 7220 is equipped with a 5.9 L (359.0 cu·in) five-cylinder diesel engine and one of three transmission variants.

The John Deere 7220 row-crop tractor used the John Deere PowerTech 6068HF475 engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) five-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 111.5 PS (82.0 kW; 110.0 HP) at 2,300 rpm of output power and 433.9 N·m (44.2 kg·m, 319.8 ft·lb) at 1,500 rpm of torque.

The John Deere 7220 is equipped with power steering, hydraulic wet disc brakes, ComfortGard cab standard with air-conditioning, or open station with two-post ROPS and 207.0 liters (54.7 US gal.; 45.5 Imp. gal) fuel tank.

John Deere 7220 Specifications

General Specifications
ModelJohn Deere 7220
Length5,130 mm (202 in)
Width2,430 mm (95.7 in)
Height2,850 mm (112.2 in)
Wheel base 2WD: 2,860 mm (112.6 in)
4WD: 2,640 mm (103.9 in)
Ground clearance (front axle) 4WD: 520 mm (20.5 in)
Weight (operating)5,370 kg (11,839 lbs)
Fuel tank capacity207.0 liters (54.7 US gal.; 45.5 Imp. gal)
Battery12V, CCA 850A
Cabin type ComfortGard Cab standard with air-conditioning or open station with two-post ROPS
Engine
Engine modelJohn Deere PowerTech 6068HF475
Engine typeFour-stroke, liquid-cooled, inline
Cylinders5
Fuel typeDiesel
Displacement5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio17.0:1
Horsepower111.5 PS (82.0 kW; 110 HP) at 2,300 rpm
Torque433.9 N·m (44.2 kg·m, 319.8 ft·lb) at 1,500 rpm
StarterElectric
Oil capacity:21.0 L (22.2 US. qt, 18.5 Imp. qt.)
Coolant capacity:15.5 L (16.4 US. qt, 13.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final driveInboard planetary
Differential lockElectro-hydraulic rear
Transmission modelJohn Deere PowrQuad
Transmission typepartial power shift
Gears16 forward and 16 reverse
Speed Forward: 30.6 kmh (19 mph) Reverse: 31.9 (19.8 mph)
Transmission oil capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission modelAutoQuad
Transmission type
Gears24 forward and 24 reverse
Transmission model
Transmission typeInfinitely Variable Transmission (IVT)
GearsInfinite forward and reverse
Speed Forward: 40.2 kmh (25 mph) Reverse: (0 mph)
Tires
Front tires Ag: 14.9R28
Rear tires Ag: 18.4R38
Three-Point Hitch
CategoryII
Control type
Lift capacity (at ends) 3,380 kg (7,450 lbs)
3,940 kg (8,700 lbs)
PTO (Power take-off shaft)
Front PTO typeIndependent
Front PTO speed1000 rpm
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeClosed-center PFC
Pressure2900 psi (199.9 bar)
Valves4
Pump flow26.7 gpm (101.1 lpm)
