John Deere D155

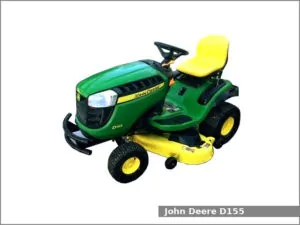

John Deere D155The John Deere D155 is a 2WD lawn tractor from the D100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2015 to 2017. The John Deere D155 is equipped with a 0.7 L V-twin gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere D155 lawn tractor used the Briggs & Stratton 44 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin naturally aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at rpm of maximum output power.

The JD D155 is equipped with manual steering, mechanical shoe on transaxle brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for John Deere D155 lawn tractor:

  • John Deere 48: mid-mount 48 in (1,210 mm) 3-blades mower deck with manual spring assisted lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 43.25 in (1,090 mm) front-mount snowblower

John Deere D155 Specifications

General Specifications
ModelJohn Deere D155
Length1,910 mm (75.2 in)
Width1,550 mm (61 in)
Height1,180 mm (46.5 in)
Wheel base
Weight218 kg (480 lbs)
Fuel tank capacity9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery12V Type BCI Group U1
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 44
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower24.3 PS (17.9 kW; 24.0 HP)
StarterElectric
Oil capacity:1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap0.76 mm (0.030 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesMechanical shoe on transaxle
Transmission modelTuff Torq T40
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tiresLawn/turf: 15×6.0-6
Rear tiresLawn/turf 20×10.0-8
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO spped
