John Deere D170

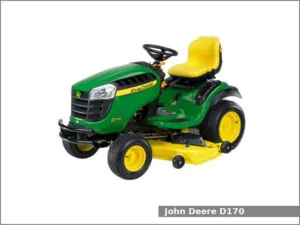

John Deere D170The John Deere D170 is a 2WD lawn tractor from the D100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2011 to 2017. The John Deere D170 is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The JD D170 lawn tractor used the Briggs & Stratton 44 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 26.4 PS (19.4 kW; 26.0 HP) of maximum output power.

The John Deere D170 is equipped with manual steering, mechanical shoe on transaxle brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for John Deere D170 lawn tractor:

  • John Deere Edge 54: mid-mount 54 in (1,730 mm) 3-blades mower deck with manual spring assisted lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 43.25 in (1,090 mm) front-mount snowblower

John Deere D170 Specifications

General Specifications
ModelJohn Deere D170
Length1,940 mm (76.4 in)
Width1,740 mm (68.5 in)
Height1,140 mm (44.9 in)
Wheel base1,240 mm (48.8 in)
Weight241 kg (531 lbs)
Fuel tank capacity9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery12V Type BCI Group U1
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 44
Engine typeFour-stroke, air-cooled, V
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower26.4 PS (19.4 kW; 26.0 HP)
StarterElectric
Oil capacity:1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap0.76 mm (0.030 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesMechanical shoe on transaxle
Transmission modelKanzaki Tuff Torq HD K46
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tiresLawn/turf: 16×6.5-8
Rear tiresLawn/turf 22×9.5-12
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO spped
