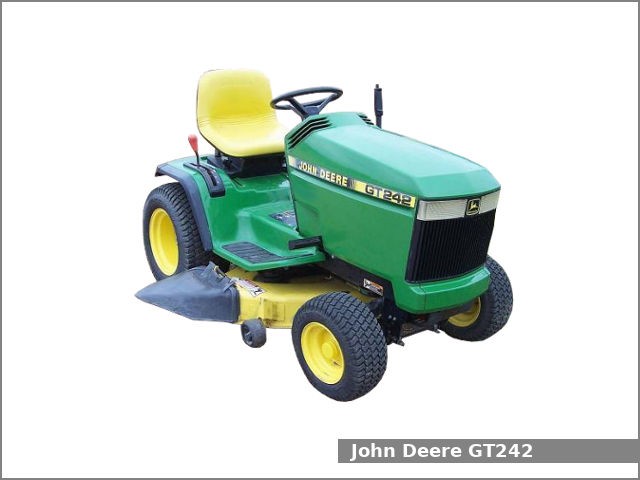

The John Deere GT242 is a lawn and garden tractor from the John Deere GT-series. The John Deere GT242 garden tractor was produced at the John Deere Horicon Works plant (Horicon, Wisconsin, USA) from 1993 to 1998.
The John Deere GT242 tractor used an air-cooled single-cylinder four-stroke Kawasaki FC420V gasoline engine with vertical PTO shaft. The FC420V engine has an OHV (overhead valve) design; cast-iron cylinder liner; reciprocating balancer; float type carburetor with fixed main jet; flywheel magneto transistor type ignition system; mechanical governor. An 89.0 mm (3.5 in) cylinder bore and 68.0 mm (2.68 in) piston stroke give the motor a total of 423 cc of displacement. Compression ratio rating is 8.4:1. The Kawasaki FC420V motor produced 14.0 HP (10.4 kW) at 3,600 rpm of horsepower and 30.6 Nm (3.12 kg·m; 22.58 ft·lb) at 2,400 rpm of torque.
The John Deere GT242 is equipped with Tuff Torq gear type transmission with six forward and one rear gear, internal wet disc brakes, and manual sector-and-pinion steering. This tractor used open operator station and 10.4 L (2.75 gallons) fuel tank.
Following attachments are available for The John Deere GT242 garden tractor:
- Mid-mount John Deere 960.0 mm (38 in) mower deck
- Front-mount John Deere 1060.0 mm (42 in) blade
- Front-mount John Deere 960.0 mm (38 in) snow blower
John Deere GT242 Specifications
General Specifications | |
Model | John Deere GT242 |
Length | 1,750 mm (69 in) |
Width | – |
Height | 990 mm (39.3 in) |
Wheel base | 1,210 mm (47.7 in) |
Weight | 276 kg (610 lbs) |
Fuel tank capacity | 10.4 L (2.75 gal) |
Battery | 12V |
Engine | |
Engine model | Kawasaki FC420V |
Fuel | Gasoline |
Displacement | 423 cc (25.8 cu-in) |
Bore x stroke | 89.0 x 68.0 mm (3.5 x 2.68 in) |
Power output | 14.0 HP (10.4 kW) at 3,600 rpm |
Starter type | Electric starter |
Oil type | 10W-30 |
Oil capacity | 1.3 L (1.4 US. qt) |
Spark plug | NGK: BPR5ES; CHAMPION: RN11YC |
Transmission and chassis | |
Chassis | 4×2 (2WD) |
Transmission type | Gear transmission (Tuff Torq) |
Gears | 6 forward and 1 reverse |
PTO (Power take-off shaft) | |
PTO Type: | Front, independent with electric clutch |
Wheels and tires | |
Front tires | Lawn/turf: 16×6.50-8 |
Rear tires | Lawn/turf: 23×10.50-12 |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
