John Deere GX355

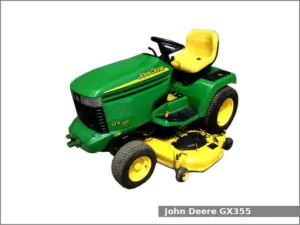

John Deere GX355The John Deere GX355 is a 2WD garden tractor from the GX300 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 2002 to 2005. The JD GX355D is equipped with a 0.8 L V-twin diesel engine and hydrostatic transmission with infinite forward and reverse gears.

The John Deere GX355 garden tractor used the Yanmar 2V-78 engine. It is a 0.8 L, 753 cm2, (46.0 cu·in) V-twin natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 18.2 PS (13.4 kW; 18.0 HP) of maximum output power.

The John Deere GX355 is equipped with power steering, wet disc brakes, open operator station and 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere GX355 garden tractor:

  • Mid-mount John Deere 48C: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere 54C: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount John Deere: 48 in (1,210 mm) blade

John Deere GX355 Specifications

General Specifications
ModelJohn Deere GX355D
Length1,830 mm (72 in)
Width990 mm (39 in)
Height1,100 mm (43.3 in)
Wheel base1,250 mm (49.2 in)
Weight336 kg (740 lbs)
Fuel tank capacity15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery12V, CCA 500A
Cabin typeOpen operator station
Engine
Engine modelYanmar 2V-78
Engine typeFour-stroke, liquid-cooled, V-twin
Cylinders2
Fuel typeDiesel
Displacement0.8 L, 753 cm2, (46 cu·in)
Bore and stroke78.0 mm X 78.0 mm (3.07 in X 3.07 in)
Compression ratio22.0:1
Horsepower18.2 PS (13.4 kW; 18.0 HP)
StarterElectric
Oil typeSAE 0W-40, 15W-40, 5W-30
Oil capacity:3.1 L (3.3 US. qt, 2.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesWet disc
Transmission modelTuff Torq K71
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity4.7 L (1.2 US. gal, 1 Imp. gal.)
Tires
Front tiresLawn/turf: 16×6.5-8
Rear tiresLawn/turf: 24×12-12
Hitch
CaterogySleeve hitch (optional)
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO spped
