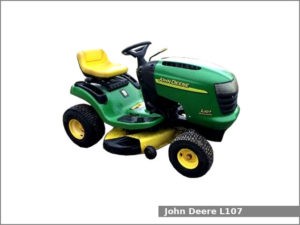

John Deere L107

The John Deere L107 is a 2WD lawn tractor from the L series. This tractor was manufactured by John Deere in 2003. The John Deere L107 is equipped with a 0.5 L single-cylinder gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The JD L107 lawn tractor used the Briggs & Stratton 31 gasoline engine. It is a 0.5 L, 500 cm2, (30.5 cu·in) single-cylinder natural aspirated gasoline engine with 90.7 mm (3.57 in) of the cylinder bore and 77.7 mm (3.06 in) of the piston stroke. This engine produced 17.3 PS (12.7 kW; 17.0 HP) of maximum output power.

This lawn tractor is equipped with manual steering, open operator station and 7.9 liters (2.1 US gal.; 1.7 Imp. gal) fuel tank. The L107 lawn tractor used a mid-mount 42 in (1,060 mm) mower deck.

John Deere L107 Specifications

General Specifications
ModelJohn Deere L107
Length
Width
Height
Wheel base
Weight
Fuel tank capacity7.9 liters (2.1 US gal.; 1.7 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 31
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke90.7 mm X 77.7 mm (3.57 in X 3.06 in)
Horsepower17.3 PS (12.7 kW; 17.0 HP)
StarterElectric
Oil capacity:1.4 L (1.48 US. qt, 1.23 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelTuff Torq K46
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 4.7 (2.9 mph)
Tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 20×8.0-8
PTO (Power take-off shaft)
Front PTO typeIndependent with manual clutch
Front PTO spped
