John Deere LA135

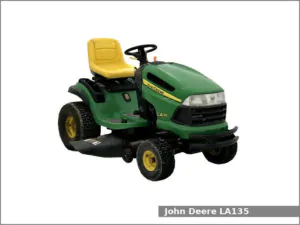

John Deere LA135The John Deere LA135 is a lawn and garden tractor from the John Deere LA105-series. The John Deere LA135 garden tractor was produced at the factory in Greeneville, Tennessee, USA from 2008 to 2010.

The John Deere LA135 tractor used an air-cooled twin-cylinder four-stroke Briggs & Stratton 40 gasoline engine with vertical PTO-shaft. A 75.4 mm (2.97 in.) cylinder bore and 73.41 mm (2.89 in.) piston stroke give the motor a total 656 cc (40 cu-in) of displacement. The Briggs & Stratton 40 engine produced 22.0 HP (16.4 kW) of output power.

The John Deere LA135 is equipped with hydrostatic transmission Tuff Torq T40 (infinite forward and reverse) and manual steering. This tractor used open operator station and 15.1 L (4 US gal.) fuel tank.

Following attachments are available for The John Deere LA135 garden tractor:

  • Mid-mount John Deere 42 Edge – 1060.0 mm (42 in) mower deck with 2-blade and manual lift
  • Front-mount John Deere 46 – 1160.0 mm (46 in) blade with manual lift

John Deere LA135 Specifications

General Specifications
ModelJohn Deere LA135
Length1,750 mm (68.7 in)
Width1,310 mm (51.7 in)
Height1,130 mm (44.5 in)
Wheel base1,240 mm (48.9 in)
Weight213 kg (470 lb)
Fuel tank capacity15.1 L (4 US gal.)
Battery12V
Engine
Engine modelBriggs & Stratton 40
FuelGasoline
Displacement656 cc (40 cu-in)
Bore x stroke75.4 x 73.4 mm (2.97 x 2.89 in)
Power output22.0 HP (16.4 kW)
Starter typeElectric starter
Oil type10W-30
Oil capacity1.9 L (2.0 US. qt)
Spark plugCHAMPION: RC12YC
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic (Tuff Torq T40)
GearsInfinite forward and reverse
Ground speed Forward: up to 8.9 kmh (5.5 mph)
Reverse: up to 5.2 kmh (3.2 mph)
Wheels and tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 20×10.00-8
